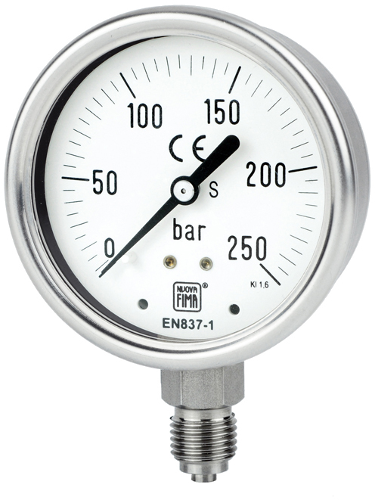

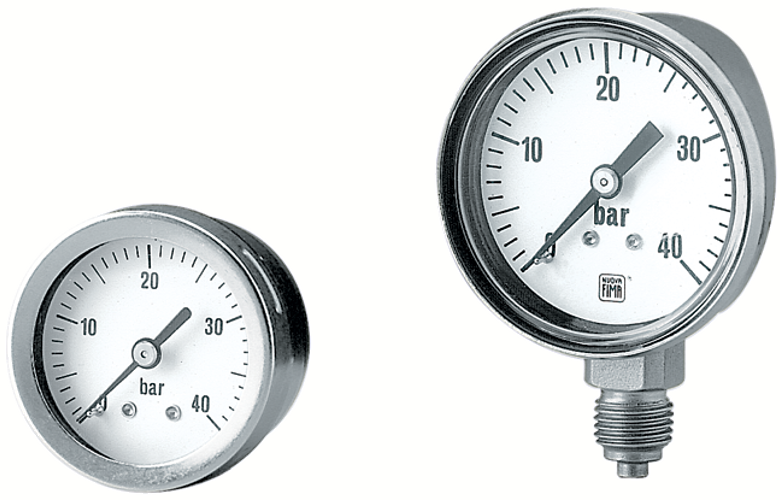

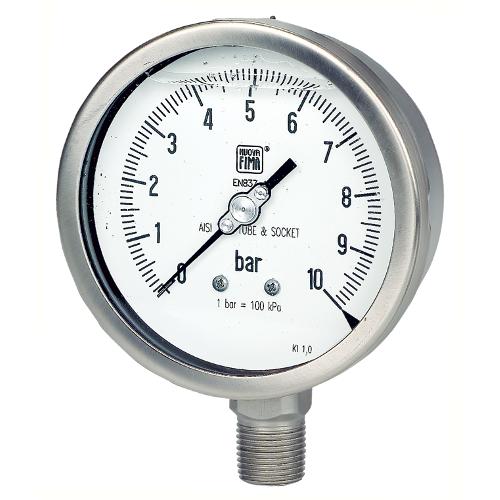

MGS18 All stainless steel pressure gauge resistant to vibration and pressure pulsations

Nuova Fima

Nuova Fima

Manometr kwasoodporny MGS18

Industrial stainless steel gauges used in chemical, petrochemical, power.

The TIG welding between the case and the process socket, strengthens the instrument and assures better containment of dampening fluids.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex c ATEX Ex c
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads

  • Stainless steel pressure gauges is designed for use in aggressive environments. Extensive use of gas and liquid media did not crystallize and did not viscosity, used primarily in:

    • Chemical industry
    • Petrochemical industry
    • Power Industry

     Features

    • Stainless steel construction
    • Mechanism of measurement: Bourdon tube
    • Measuring range: 0..0,6 bar to 0..1600 bar and vaccum of -1..0 bar to -1..24 bar
    • Maximum medium temperature of 150 deg. C (dry gauge), 65 deg. C (filled pressure gauge)
    • Ambient temperature: -50..65 deg. C
    • TIG welding between the case and the process socket, strengthens the instrument and assures better containment of dampening fluids
    • Available dry or filled with glycerine or silicone oil
    • IP55, IP67, depending on the version
    • Use for non-crystallizing or low viscosity medium
    • Vibration, pulsation and shock resistant
    •  Optionally ATEX Ex c certificate

    • Variable pressure
    • Output signal none
    • Accuracy 1,0%
    • ATEX Ex c
    • Process connection 1/4 BSPP male, 1/2 BSPP male, M20x1.5 male, 1/4 NPT male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L
    • Housing stainless steel
    • Ingress protection rating IP67, IP55
  • `

    1. NF MGS18 Datasheet

      156kb | ENG DE

    2. NF MGS Manual ATEX

      202kb | ENG

    3. NF MGS18 Manual

      204kb | ENG

    4. NF MGS18 Datasheet ATEX

      130kb | ENG
