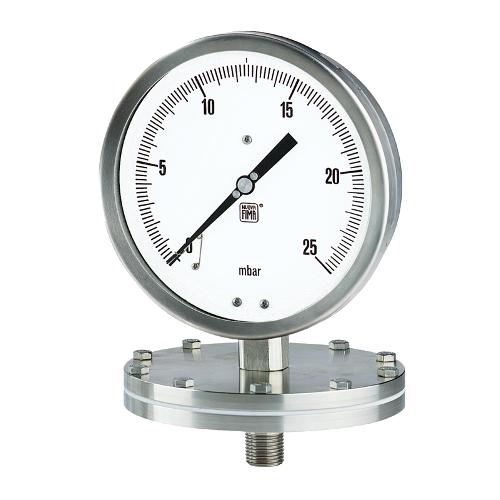

MN12/18 Diaphragm pressure gauges with threaded connection

Nuova Fima

Stainless steel diaphragm pressure gauges with threaded connections for measuring pressure or vacuum. Special gauges to viscous, crystallising and aggressive medium.

Measuring range from -1..0 bar to 0..400 mbar.

Approvals & certificates

PED
CE
EAC Ex

Diaphragm pressure gauges with threaded connections designed to work with viscous, crystallizing and aggressive media.

Compared to the bourdon tube system they are more robust and are better able to withstand overpressure or aggressive fluids.

Application
- Viscous media
- Crystallizing media
- Chemically aggressive media
Features
- Threaded connection
- Made of stainless steel
- Measuring mechanism: membrane
- Range of -1..0 mbar to 0..400 mbar
- Diaphragm materials: Stainless steel, Monel 400, Hastelloy C, Tantalum, Teflon
- Variable pressure
- Output signal none
- Accuracy 1.6%
- ATEX none
- Process connection 1/2 BSPP male, 1/2 NPT male, other
- Sensor / wetted parts material 316/316L, 316Ti, Hastelloy, Monel, PTFE
- Housing stainless steel
- Ingress protection rating IP65, IP55
`
1. NF MN12-18 Datasheet

  151kb | ENG
2. NF MN 12-18 Manual

  130kb | ENG
