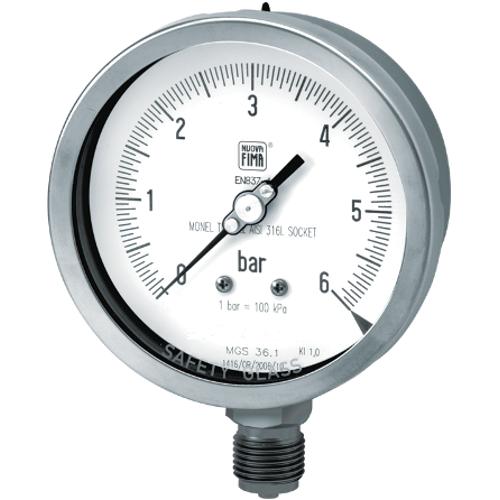

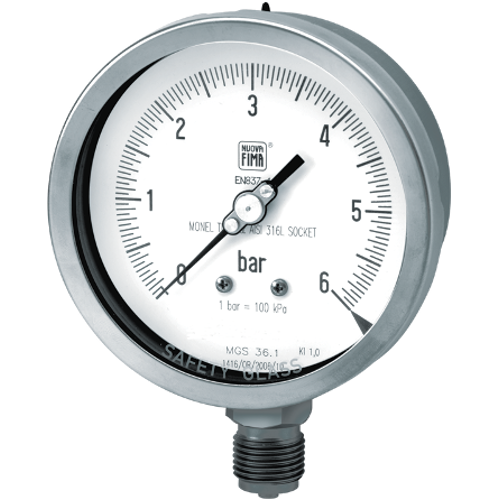

MGS36 NACE pressure gauges

Nuova Fima

Nuova Fima

Manometr kwasoodporny NACE MGS36

Pressure gauges intended for the petrochemical and oil and gas industry.

Design adapted to the most severe conditions created by hydrogen sulfide.

Suitable for use with high viscosity but not crystallizing medium.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex c ATEX Ex c
  1. Features
  2. Specification
  3. Downloads
  • Pressure gauges according to NACE MR0103 / MR0175 - ISO 15156-3.

    Designed for operation in the harshest environmental conditions where is hydrogen sulfide - H2S. Extensive use of gas and liquid media that are sticky but not crystallize.

    Application:

    • Petrochemical industry
    • Oil and gas

     Features

    • Class S1 according to EN 837-2 stainless steel construction
    • Mechanism of measurement: Bourdon tube made of Monel
    • Process connection: stainless steel or Monel
    • Helium leak test performed
    • Measuring range from -1..0 bar to 0..600 bar
    • Maximum process temperature of 150 deg. C (dry gauge), 65 deg. C (filled pressure gauge)
    • TIG welded to the casing connection port stiffens the structure and ensures its tightness
    • Available dry or filled with glycerine or silicone oil
    • IP55, IP67, depending on the version
    • Vibration, pulsation and shock resistant
    • Optionally ATEX Ex c certyficate
    • Variable pressure
    • Output signal none
    • Accuracy 1,0%
    • ATEX Ex c
    • Process connection 1/2 BSPP male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L, Monel
    • Housing stainless steel
    • Ingress protection rating IP67, IP55
  • `
    1. NF MGS36 Datasheet

      124kb | ENG

    2. NF MGS36 Datasheet ATEX

      130kb | ENG

    3. NF MGS36 Manual ATEX

      202kb | ENG

    4. NF MGS36 Manual

      204kb | ENG

Similar products

  1. Welded diaphragm seals

    STW Welded diaphragm seals

    Welded construction and threaded process connection

    details
  2. All stainless steel pressure gauge resistant to vibration and pressure pulsations

    MGS18 All stainless steel pressure gauge resistant to vibration and pressure pulsations

    Industrial stainless steel gauges commonly used in chemical, petrochemical or power industry

    details

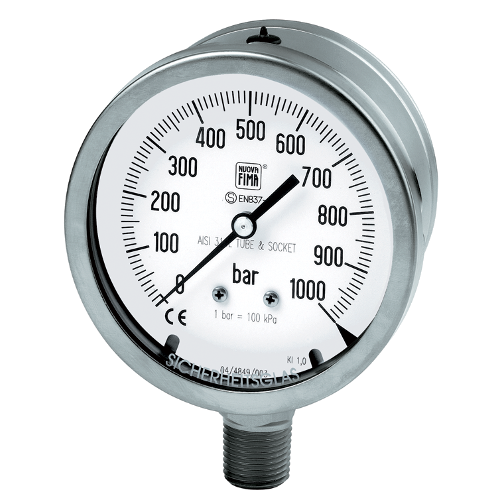

  3. Safety stainless steel pressure gauges
