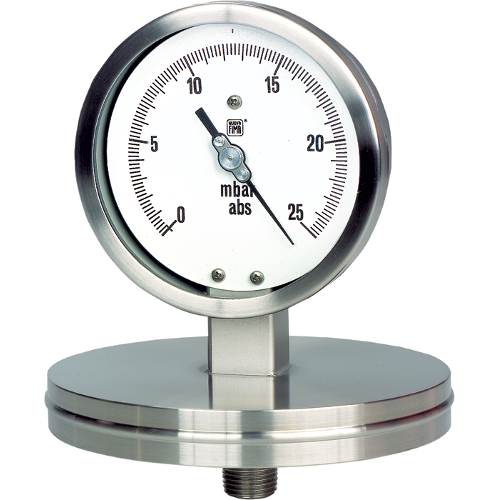

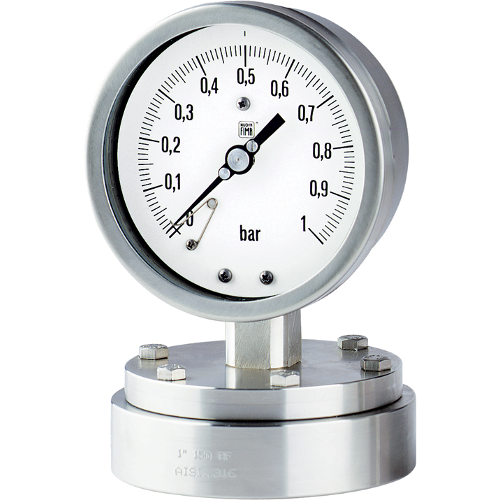

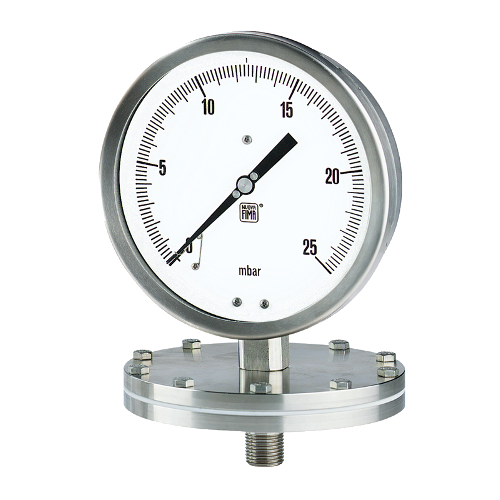

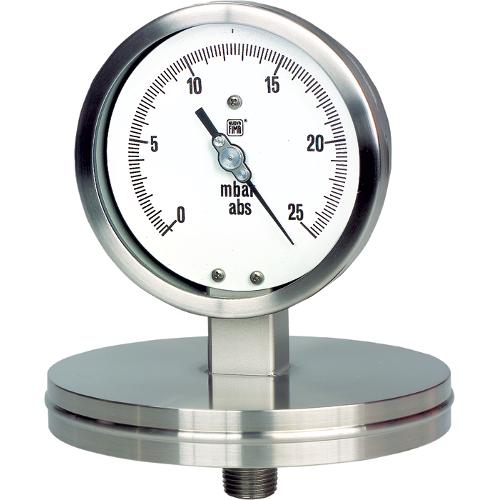

MN12/18 abs Diaphragm pressure gauges for absolute pressure

Nuova Fima

Nuova Fima

Pressure gauges used the measurement of absolute pressure in the range of 0..60 mbar to 0..1,6 bar abs

Approvals & certificates

CE
PED
EAC Ex

The measurement element composed by a concentric waving diaphragm, separates an upper housing called “of reference” which is empty, from a lower housing where the fluid pressure gets in. The upper housing is isolated by a bellows from the atmospheric pressure and it allows to transmit the bending diaphragm movement, under the fluid pressure action, to the pointer through a joint and a linkage. In order to be a suitable support for the diaphragm and to ensure a high instrument resistance to overpressure, the upper part of the reference housing is as rippled as the diaphragm. The instrument case is exposed to the atmospheric pressure therefore it is possible to install optional accessories inside or outside it.

Application
Chemical Industry

Petrochemical Industry

Oil and gas

Power engineering
Features
Measuring range of 0..60 mbar abs do 0..1,6 bar abs

Crystallizzing fluids

Viscous fluids

Low pressure

Vacuum

Combined (Vacuum + Pressure)

Sedimentous fluids
- Variable pressure
- Output signal none
- Accuracy 1,0%, 1.6%
- ATEX none, Ex c
- Process connection 1/2 BSPP male, 1/2 NPT male
- Sensor / wetted parts material 316/316L
- Ingress protection rating IP65, IP55
`
1. NF MN12/18/ABS Manual

  130kb | ENG
2. NF MN12/18/ABS Datasheet

  141kb | ENG
