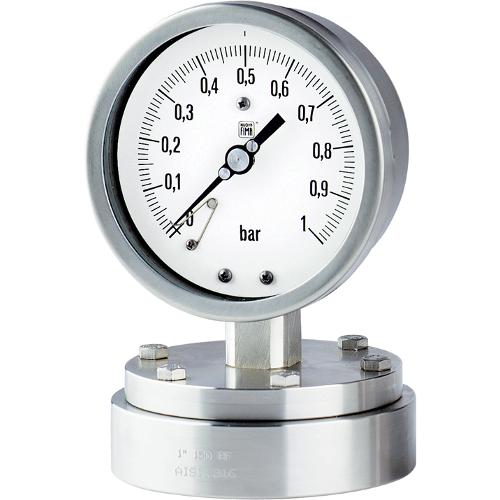

MN12/18/F Diaphragm pressure gauges with flange connection

Nuova Fima

Nuova Fima

Manometr membranowy z przyłączem kołnierzowym MN12/18?F

Stainless steel diaphragm pressure gauges with flanged connections for measuring pressure or vacuum. Special gauges to viscous, crystallising and aggressive medium.

Measuring range from -1..0 bar to 0..400 mbar.

Approvals & certificates

  • PED PED
  • CE CE
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • Diaphragm pressure gauges with flanged connections are designed to work with the viscous, crystallizing and aggressive medium.

    Compared to the bourdon tube system they are more robust and are better able to withstand overpressure or aggressive fluids.

    Application

    • Viscous media
    • Crystallizing media
    • Chemically aggressive media

    Features

    • Flanged connection
    • Made of stainless steel
    • Measuring mechanism: membrane
    • Range of -1..0 bar to 0..400 mbar
    • Diaphragm materials: Stainless steel, Monel 400, Hastelloy C, Tantalum, Teflon

    • Variable pressure
    • Output signal none
    • Accuracy 1,0%, 2.5%, 1.6%
    • ATEX none
    • Process connection 1/2 BSPP male, 1/2 NPT male, other
    • Sensor / wetted parts material 316/316L, 316Ti, Hastelloy, tantalum, Monel, PTFE
    • Housing stainless steel
    • Ingress protection rating IP65, IP55
  • `
    1. NF MN12-18 Datasheet

      151kb | ENG

    2. NF MN 12-18 Manual

      130kb | ENG
