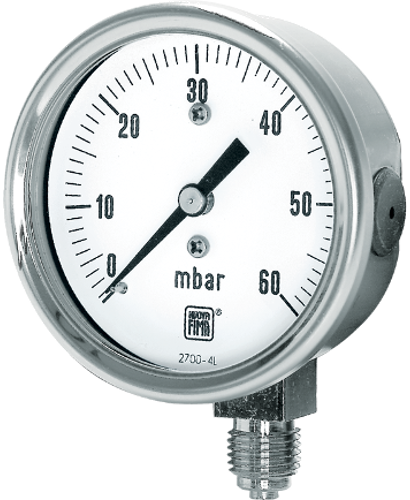

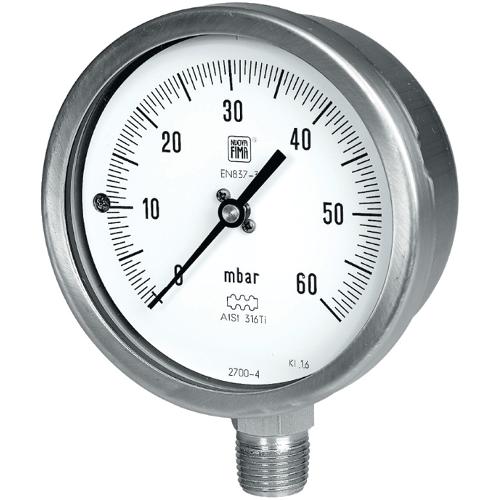

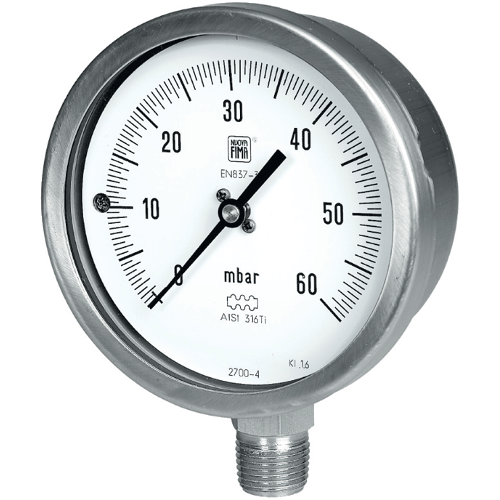

MN9 Capsule pressure gauges

Nuova Fima

Nuova Fima

Manometr puszkowy MN9

Pressure gauges used to measuring low pressure and vacuum in the range of -600...0 to 0...600 mbar.

Movement made in copper alloy or stainless steel.

Pressure gauges without filling.

Approvals & certificates

  • CE CE
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • Pressure gauges used for measuring low pressure and vacuum in the range of -600...0 mbar to 0...600 mbar.

    Application

    • Chemical Industry
    • Petrochemical Industry
    • Power Industry
    • Oil and Gas
    • Machine building (OEM)
    • Engineering Procurement Construction (EPC)

    Features

    • Movement available in standard (cooper alloy) and stainless steel
    • Range of -600..0 mbar to 0..600 mbar
    • Maximum temperature: 65 deg. C

    • Variable pressure
    • Output signal none
    • Accuracy 1,0%, 1.6%
    • ATEX none
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 1/4 NPT male, 1/2 NPT male, other
    • Sensor / wetted parts material 316/316L, brass
    • Housing stainless steel
    • Ingress protection rating IP55
  • `
    1. NF MN9 DN63 Datasheet

      116kb | ENG

    2. NF MN9 Series DN100-150 Datasheet

      148kb | ENG

    3. NF Manual MN9

      129kb | ENG
