STT Screwed diaphragm seals

MERCON

MERCON

Gwintowy separator membranowy MERCON STT

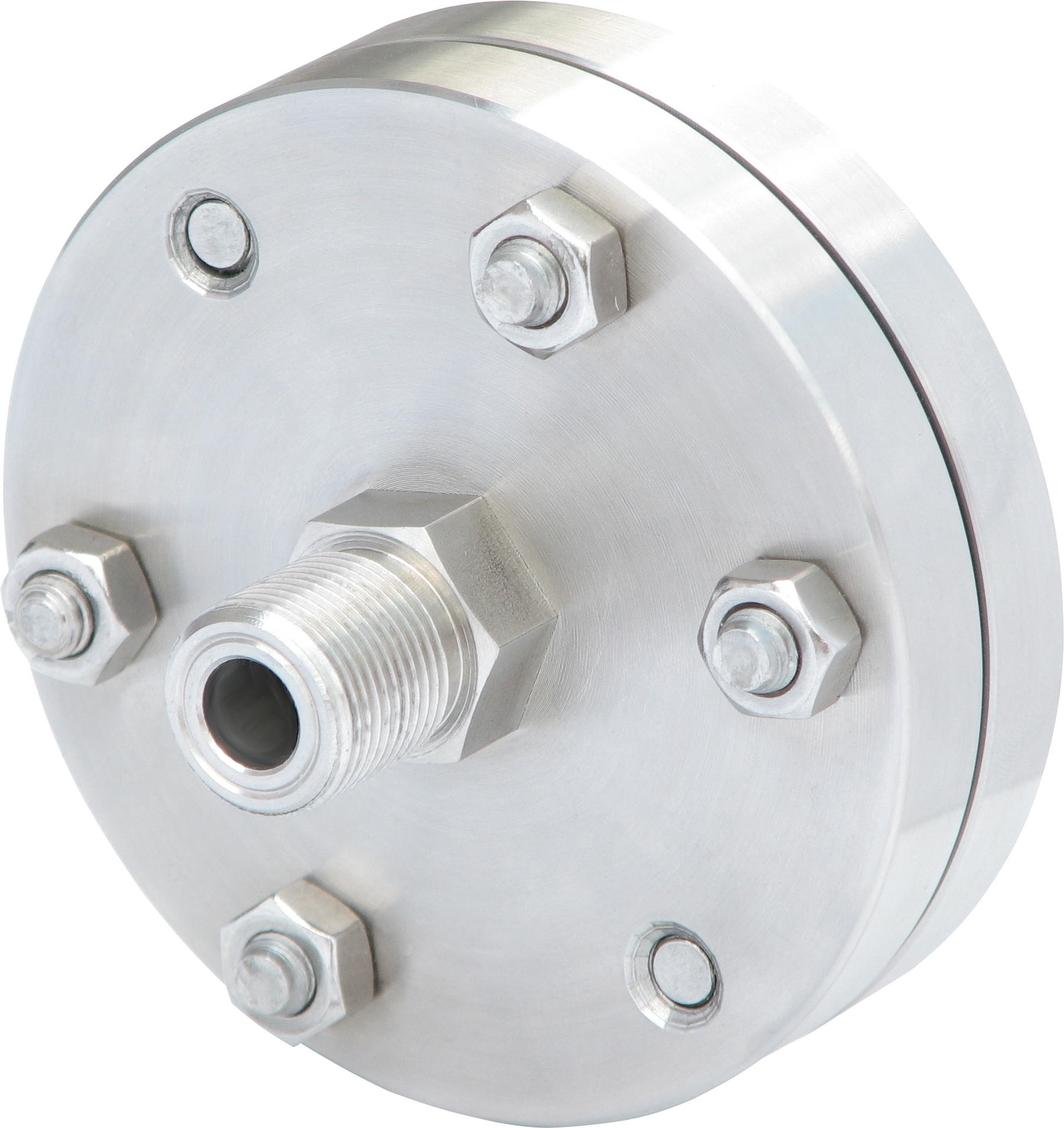

  • STT screw construction diaphragm seal with threaded process connection

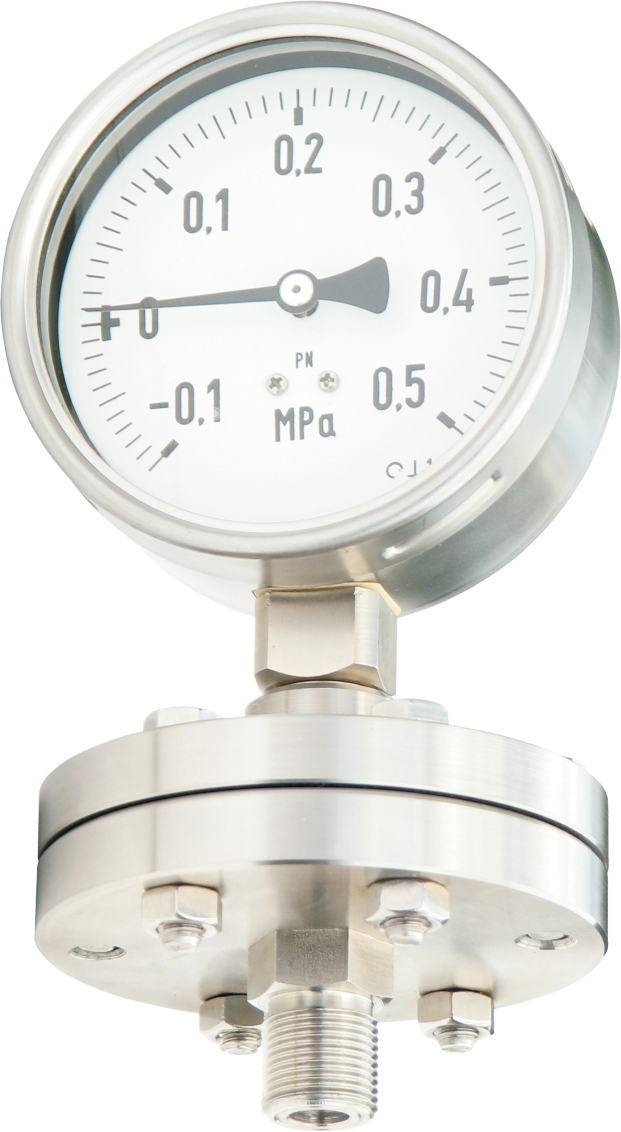

  • STT Ø98 diaphragm seal connection with pressure gauge Ø100

Screw diaphragm seals are used to measure the pressure in industrial applications for medium who has a high viscosity, chemical agressive or crystallizing.

Inner diaphragm is ideal for low pressure range
In special performed we can do, maximum measuring pressure - 100 bar.

  1. Features
  2. Specification
  3. Downloads
  • Screw diaphragm seals are used to measure the pressure in industrial applications for medium who has a high viscosity, chemical agressive or crystallizing.


    In the standard version, pressure measuring range up to 16 bar.
    In a special version - up to 100 bar

    Application

    • Chemical industry
    • Petrochemical industry

    Features

    • Internal diaphragm
    • Bolted construction separator
    • The diameter of the diaphragm is greater than the nominal diameter
    • Threaded connection
    • A wide choice of connections for measuring instrument
    • A wide range of materials for measuring diaphragm
    • Several types of steel for the body
    • The applicability of the reinforcing capillary made of stainless steel
    • The applicability of the heatsink
    • Several types of filling liquid measuring system

    • Variable pressure
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 1-1/2 NPT male, 2 NPT male, 1/8 NPT female, 1/4 NPT female, 1/2 NPT female, other
    • Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium, aluminum, PTFE, Buna N / NBR
  • `
    1. MERCON STT Karta katalogowa

      166kb | POL

    2. MERCON STT Datasheet

      163kb | ENG

Similar products

  1. Screwed diaphragm seals

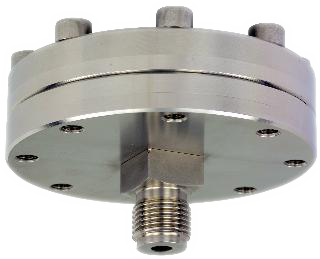

    STL Screwed diaphragm seals

    Screwed construction with PTFE covered wetted parts

    details
  2. All stainless steel pressure gauge resistant to vibration and pressure pulsations

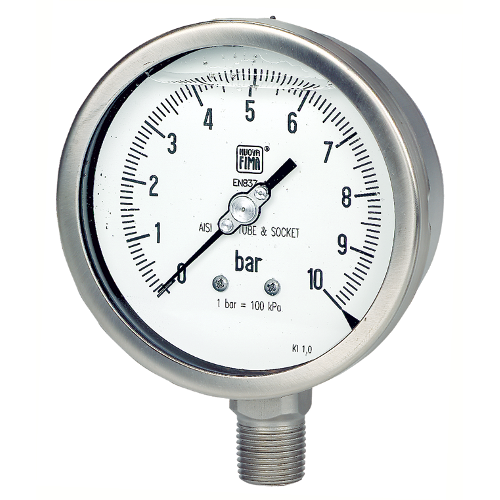

    MGS18 All stainless steel pressure gauge resistant to vibration and pressure pulsations

    Industrial stainless steel gauges commonly used in chemical, petrochemical or power industry

    details
  3. Welded diaphragm seals

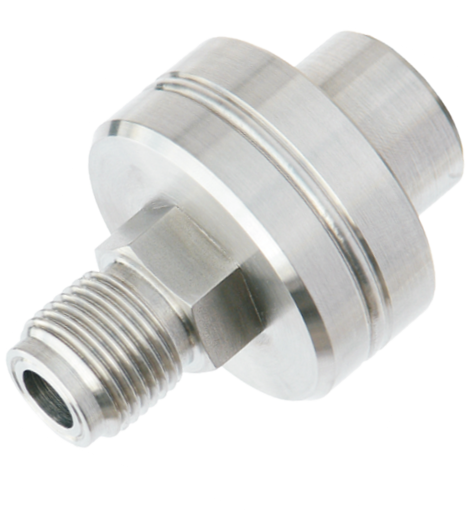

    STW Welded diaphragm seals

    Welded construction and threaded process connection

    details
  4. Diaphragm seals with flush diaphragm

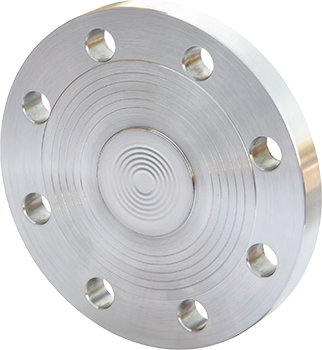

    SFF Diaphragm seals with flush diaphragm
