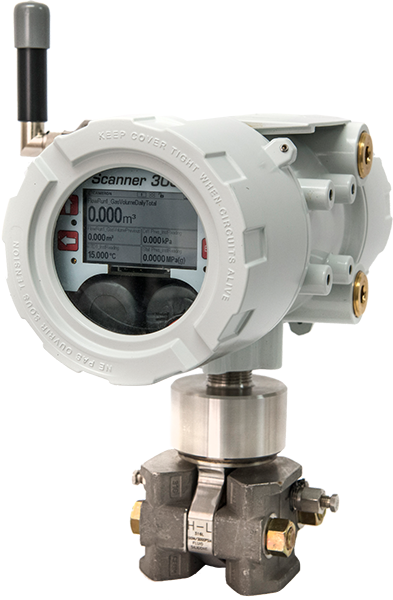

Scanner 3100 Flow computers

Cameron (Schlumberger)

Cameron (Schlumberger)

Komputer przepływu o rozliczeniowej dokładności Scanner 3100 Cameron

Cameron Scanner flow computer measures standard volume, mass, and energy of saturated steam and gases together with the standard volume and mass of liquids. In addition to flow measurement the Scanner monitors, records and reports non-flow related operational conditions like level, pressure, temperature and other items.

The Scanner Model 3100 flow computer supports two integral flow runs, 17 inputs/outputs, and Ethernet and serial communications.

Approvals & certificates

  • ATEX Ex d ATEX Ex d
  • IECEx IECEx
  1. Features
  2. Specification
  3. Downloads
  • Features:

    • Bi-directional flow measurement
    • 17 signal Inputs / Outputs
    • Two integral compensated flow run inputs
    • Up to 20 remote flow runs via Scanner 2000 devices
    • Computes amounts of any gas and most liquids
    • Data viewing, export, and report writing software available without added cost
    • Wireless and/or wired communication options
    • Automated integration of remote Scanner measurement point
    • Ability to collect and share up to 128 data points from any brand of Modbus compliant automation device

    • Variable flow
    • Output signal 4..20 mA analogue
    • Digital communication Modbus®
    • ATEX Ex d
    • Local display yes
    • Power supply external 24 VDC, battery
    • Electrical connection 3/4 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `
    1. Cameron Scanner 3100 EFM Installation manual

      5.6MB | ENG

    2. Cameron Scanner 3100 Web Interface Installation manual

      3.8MB | ENG

    3. Cameron Scanner 3100 Datasheet

      1MB | ENG

    4. Cameron Scanner 3100 Modbus Installation manual

      2.2MB | ENG

    5. Cameron Scanner Accessories Datasheet

      1.5MB | ENG

    6. Cameron Scanner Short form catalogue

      2.8MB | ENG

    7. Cameron Scanner Software Datasheet

      934kb | ENG

Similar products

  1. Ultrasonic liquid flow meters

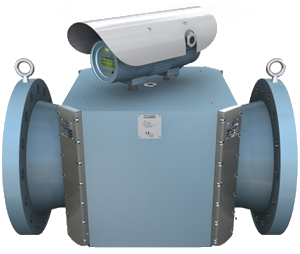

    CALDON 280Ci Ultrasonic liquid flow meters

    Eight-path ultrasonic liquid flow meters with MID approval

    details
  2. Ultrasonic gas flow meters

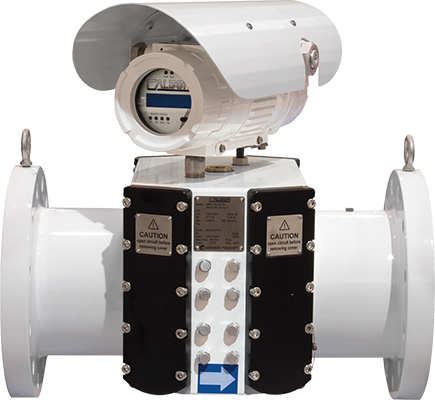

    CALDON 380Ci Ultrasonic gas flow meters

    Eight-path gas ultrasonic gas flowmeter with MID approval

    details
  3. Cone meters

    NUFLO Cone meters

    Cone meter that provides accurate, repeatable and cost optimized measurement solutions

    details
  4. Coriolis flow meters

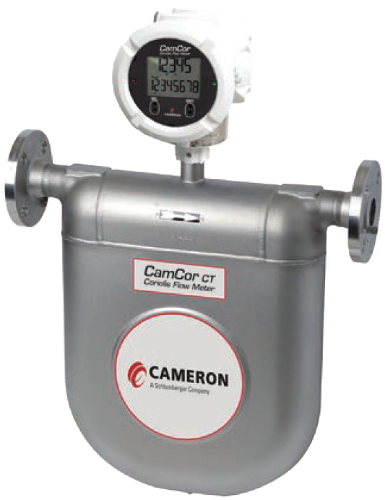

    CamCor CT Coriolis flow meters
