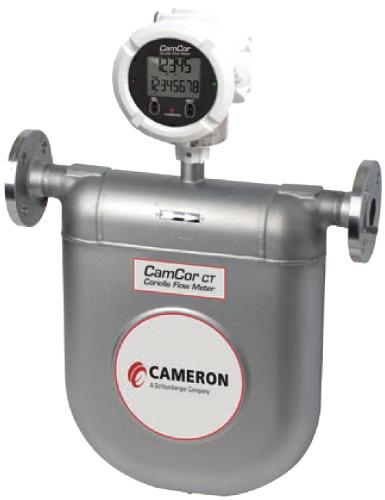

CamCor CT Coriolis flow meters

Cameron (Schlumberger)

Cameron (Schlumberger)

Rozliczeniowe przepływomierze masowe z zatwierdzeniem MID CamCor CT Cameron

The CAMERON CamCor CT Series custody transfer coriolis flow meter – featuring precision accuracy and dual deep U sensor tubes – is specifically designed for custody-transfer applications. This top-of-the-line Coriolis flow meter offers the highest performance for accuracy, repeatability, wide flow range, low pressure loss, and safe design.

Approvals & certificates

  • CE CE
  • MID MID
  • ATEX Ex d ATEX Ex d
  • IECEx IECEx
  • HART® HART®
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads

  • Features:

    • Deep U-shaped dual sensors maximize accuracy
    • Flow rate turndown up to 200:1
    • Transmitters available as integral or remote-mounted
    • Low-temperature models suitable for cryogenic fluids, such as LNG, down to -328˚F (-200˚C)
    • High-temperature models suitable for temperatures up to +662˚ F (+350˚ C)
    • Extensive I/O count, including dual independent pulse outputs, dual independent analog outputs, status input, and status output
    • Communications: Modbus RS-485 and HART compliant
    • Easy configuration via infrared sensors or EZ-Link interface software
    • Self-diagnostic display informs user of potential problems
    • Diagnostic check for pipeline vibration and media pulsation


    • Variable density, flow, temperature
    • Output signal 4..20 mA analogue
    • Digital communication HART®, Modbus®
    • Accuracy 0.1%, 0.2%, 0.5%
    • Repeatablity 0.2%, 0.05%
    • ATEX Ex d
    • Local display yes
    • Process connection other
    • Sensor / wetted parts material 316/316L, Hastelloy
    • Seals Viton® / FKM / FPM
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection 3/4 NPT female
    • Housing aluminum
    • Ingress protection rating IP66, IP67
  • `

    1. Cameron CamCor CT General specification

      1.8MB | ENG

    2. Cameron CamCor Installation manual

      6.4MB | ENG

    3. Cameron CamCor Datasheet

      843kb | ENG

    4. Cameron CamCor Modbus protocol Installation manual

      793kb | ENG

Similar products

  1. Coriolis flow meters

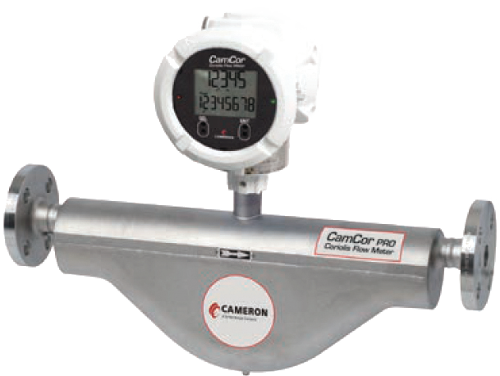

    CamCor PRO Coriolis flow meters
