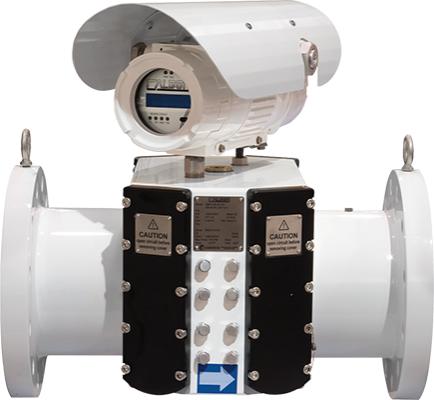

CALDON 380Ci Ultrasonic gas flow meters

Cameron (Schlumberger)

Cameron (Schlumberger)

Przepływomierze ultradźwiękowe do gazów Caldon 380Ci Cameron

The CALDON 380Ci Series eight-path gas ultrasonic gas flowmeter has our unique eight-path, dual-plane, cross-path design. The meter design is immune from the effects of swirl and velocity profile asymmetry.
This gas flow meter is available for natural gas measurement.

Approvals & certificates

  • PED PED
  • CE CE
  • MID MID
  • ATEX Ex d ATEX Ex d
  1. Features
  2. Specification
  3. Downloads
  • Features:

    • Eight-path, dual-plane configuration
    • Sealed transducer housing design
    • Proprietary coating
    • Available in 4" to 24"
    • Compact installation footprint reduces the length of upstream pipe and eliminates the need for a flow conditioner

    • Variable pressure, flow, temperature
    • Output signal 4..20 mA analogue
    • Accuracy 0.1%, 0.2%
    • Repeatablity 0.1%, 0.05%
    • ATEX Ex d
    • Local display yes
    • Process connection other
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection 3/4 NPT female
    • Housing aluminum, stainless steel
  • `
    1. Cameron CALDON 380Ci Installation manual

      4.5MB | ENG

    2. Cameron CALDON 380Ci Datasheet

      1.5MB | ENG

    3. Cameron CALDON 380Ci General specification

      625kb | ENG

    4. Cameron CALDON LEFM Link softare Installation manual

      2.6MB | ENG
