Spectra 10 OEM presssure switches

United Electric Controls

United Electric Controls

Kompaktowe sygnalizatory ciśnienia Spectra 10 United Electric Controls

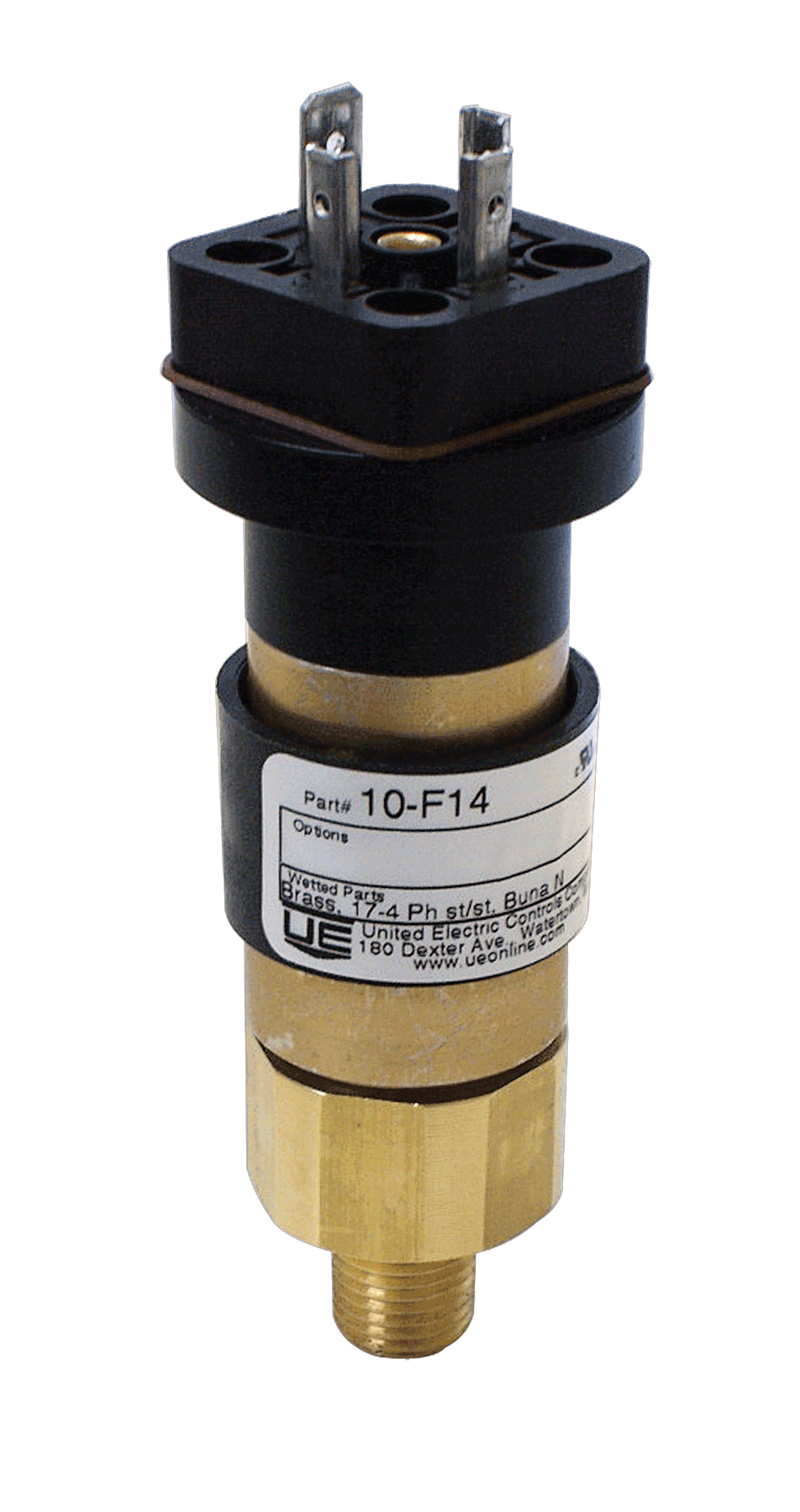

  • UE Spectra 10

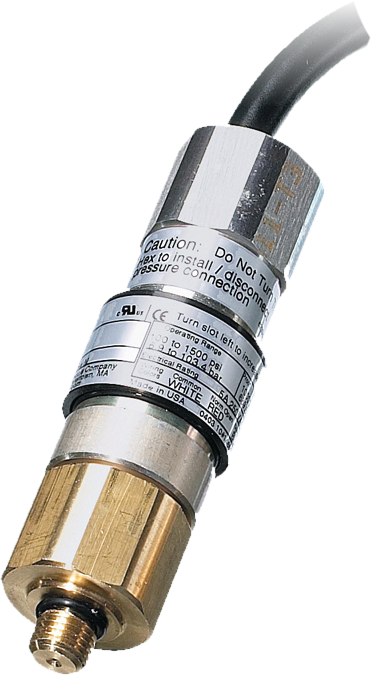

  • UE Spectra 10 with cable

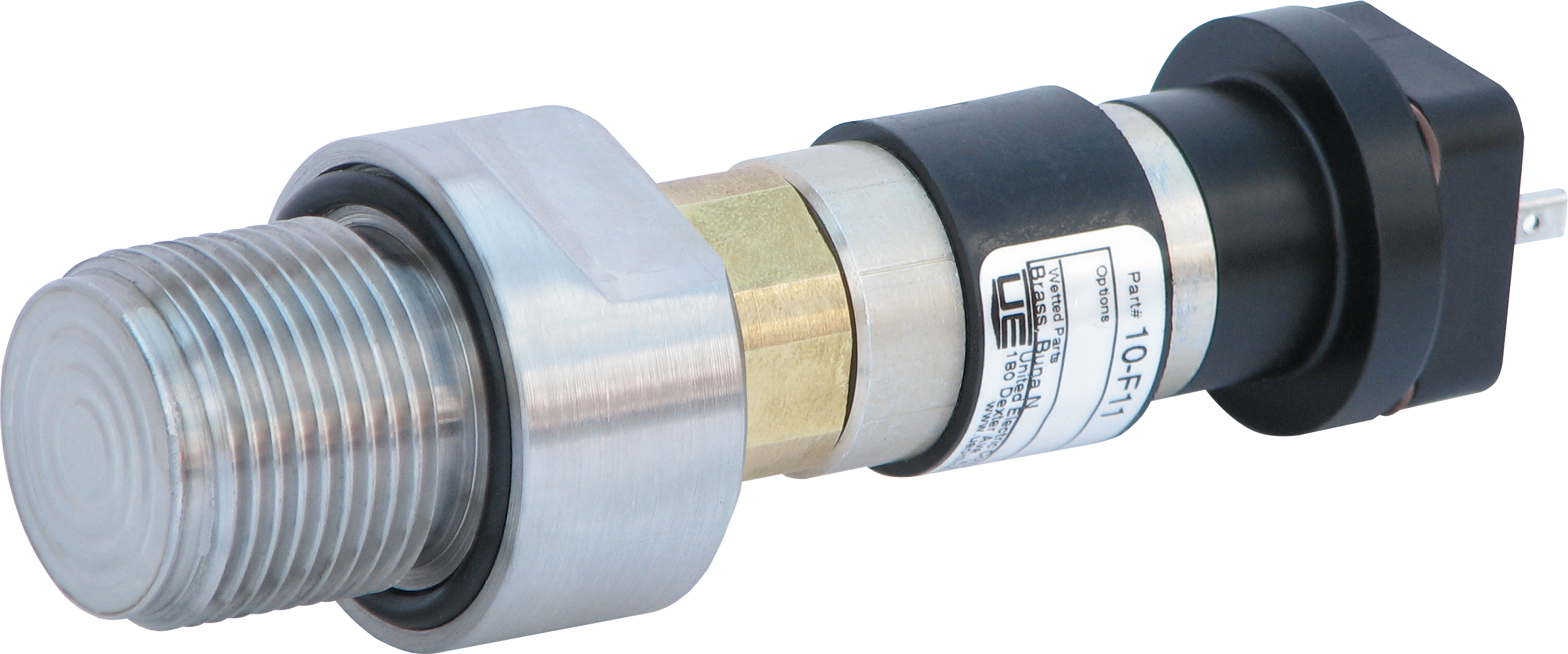

  • UE Spectra 10 with STF diaphragm seal

A reliable, cost-effective and cylindrical switches. Because of its compact diamentions and "machine" electrical connections Spectra 10 mounts wherever space is at a premium.

Among the tough applications in which the product has proven itself are: mobile hydraulic units, compactors, boilers and lube oil systems. Here wide adjustable ranges and vibration ressistance is crucial.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • IECEx IECEx
  1. Features
  2. Specification
  3. Downloads

  • Available with seven electrical termination varieties, a choice of sensors, and several pressure connections, the 10 Series is designed to meet most requirements for a variety of OEM and industrial applications. Just 1-1/4 inches in diameter and as small as 3 inches high, this compact, cylindrical switch mounts wherever space is at a premium.

    Features:

    • Easy on-line pressure adjustment
    • Hermetically sealed switches
    • Compact, cylindrical switch

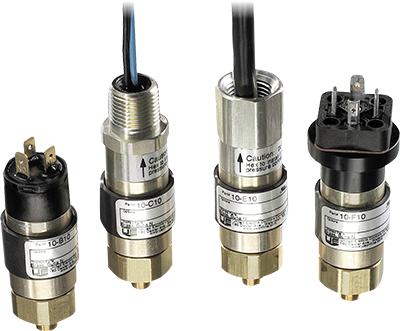

    • Choice of 7 electrical terminations
    • Rugged and vibration resistant
    • Adjustable ranges from 0,3 to 517,1 bar

    • Variable pressure
    • Output signal VDC switch, VAC switch
    • Repeatablity 1%, 1.5%
    • ATEX Ex i
    • Process connection 1/2 BSPP male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L, Buna N / NBR, brass
    • Seals Buna N / NBR
    • Electrical connection 1/2 NPT female, DIN connector, 1/2 NPT male, leadwires
    • Housing aluminum
    • Ingress protection rating IP66
  • `
