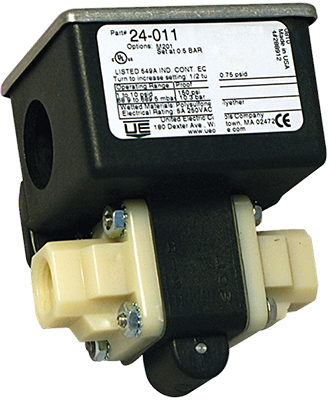

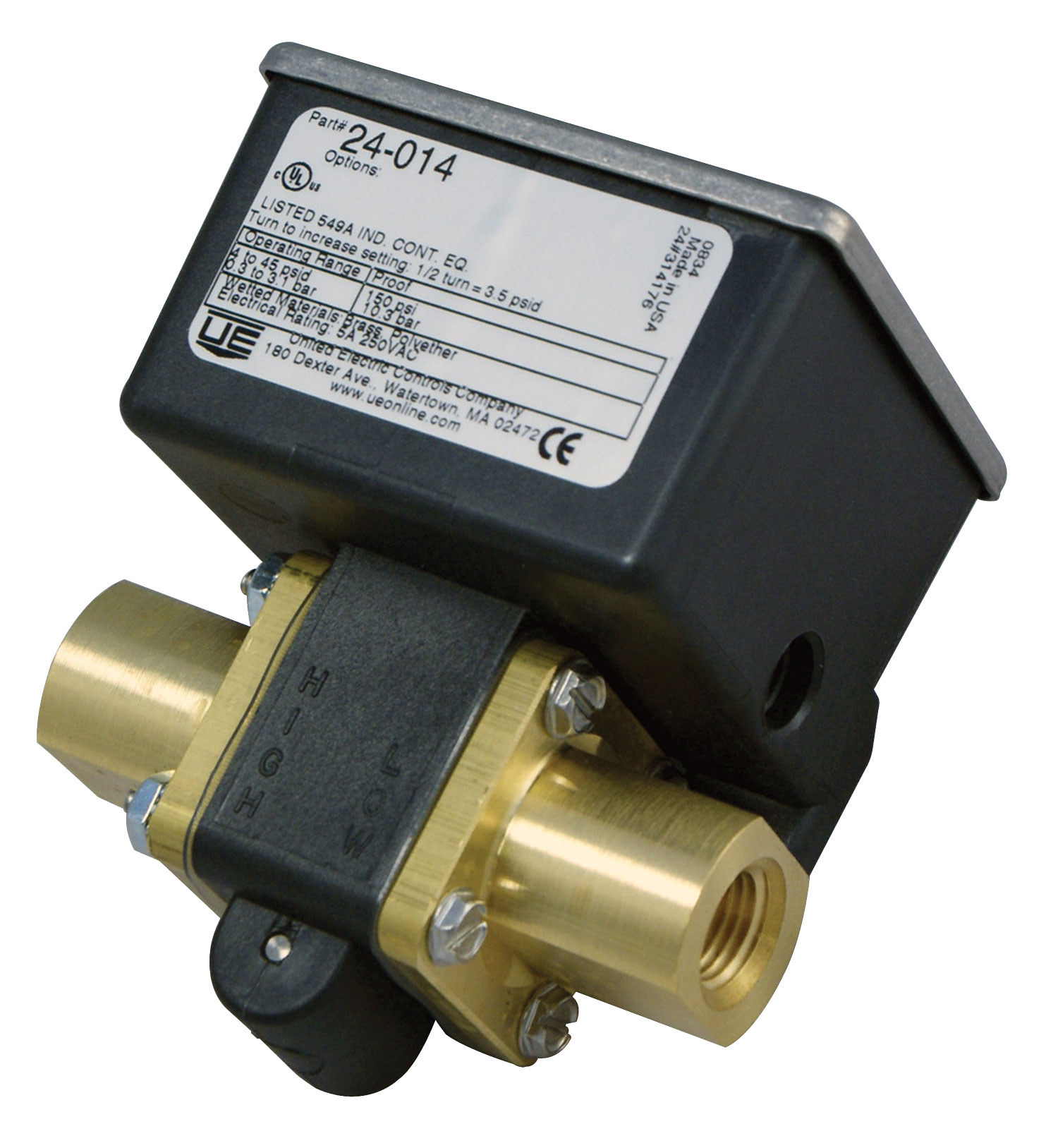

24 Series Economic OEM switches

United Electric Controls

United Electric Controls

Ekonomiczny sygnalizator różnicy ciśnień lub ciśnienia OEM 24 United Electric Controls

  • UE 24 Series

The cost-effective 24 Series Delta-Pro™ pressure, vacuum, and differential pressure switches offer a unique blend of compact size, excellent performance, and environmental protection.

The 24 Series switches are ideal for simple OEM applications whre there is water, non-agressive gases or hydraulic oil.

Approvals & certificates

  • CE CE
  • PED PED
  • UL UL
  1. Features
  2. Specification
  3. Downloads
  • The precision snap-acting switch and sensitive diaphragms combine to provide a narrow deadband and repeatability of approximately ±1% of full scale range. A convenient, externall accessible adjustment screw is multi-turn to provide easy set point adjustability. The force-balanced design gives the Delta-Pro excellent vibration resistance.

    Features:

    • Brass & Polysulfone (FDA compliant) Pressure Connections
    • Compact Size
    • Complies with Enclosure Type 4 with watertight conduit fitting
    • Terminal block wiring
    • Optional red status light

    Ranges:

    • Pressure: -1 to 6,2 bar
    • Differential Pressure: 68,9 mbar to 3,1 bar

    • Variable pressure, differential pressure
    • Output signal VDC switch, VAC switch
    • Repeatablity 1%
    • ATEX none
    • Process connection 1/4 NPT female
    • Sensor / wetted parts material Buna N / NBR, brass, Viton® / FKM / FPM
    • Electrical connection 1/2 NPT female
    • Ingress protection rating IP65
  • `
    1. UE LVD CE Declaration

      206kb | ENG

    2. UE PED CE Declaration

      96kb | ENG

    3. UE Short form catalogue

      14MB | ENG

    4. UE 24 Series pressure Installation Manual

      246kb | ENG

    5. UE 24 Series Teflon Installation Manual

      26kb | ENG

    6. UE 24 Series Datasheet

      572kb | ENG

Similar products

  1. Temperature switches

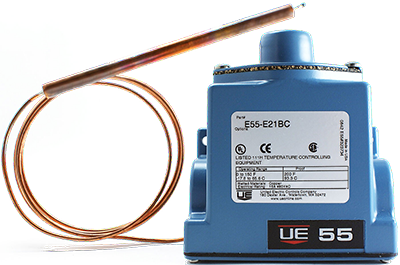

    55 Series Temperature switches

    Temperature switches for OEM applications

    details
  2. Economic OEM switches

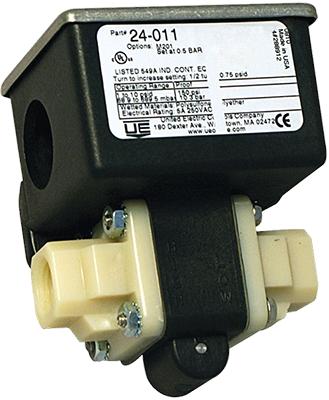

    24 Series Economic OEM switches

    Pressure, vacuum, and differential pressure switches for simple OEM applications

    details
  3. Skeleton switches

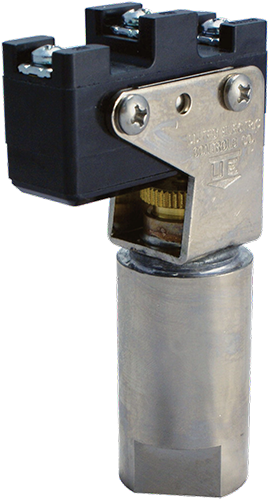

    J40 Series Skeleton switches
