54 Series Economic OEM switches

United Electric Controls

United Electric Controls

Ekonomiczne sygnalizatory ciśnienia lub temperatury 54 United Electric Controls

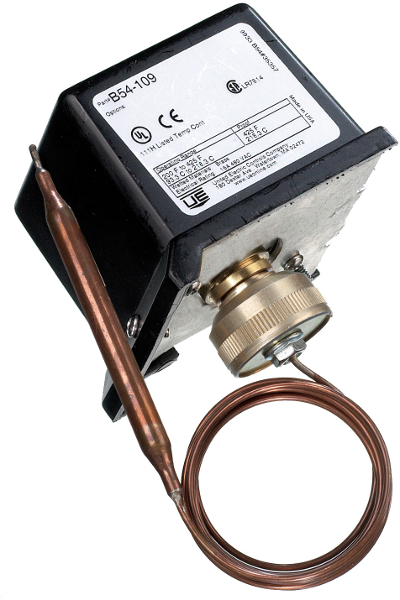

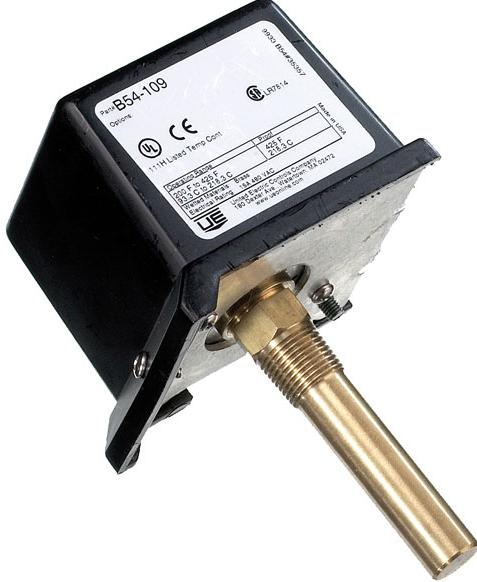

  • UE 54 Series for temperature measurement

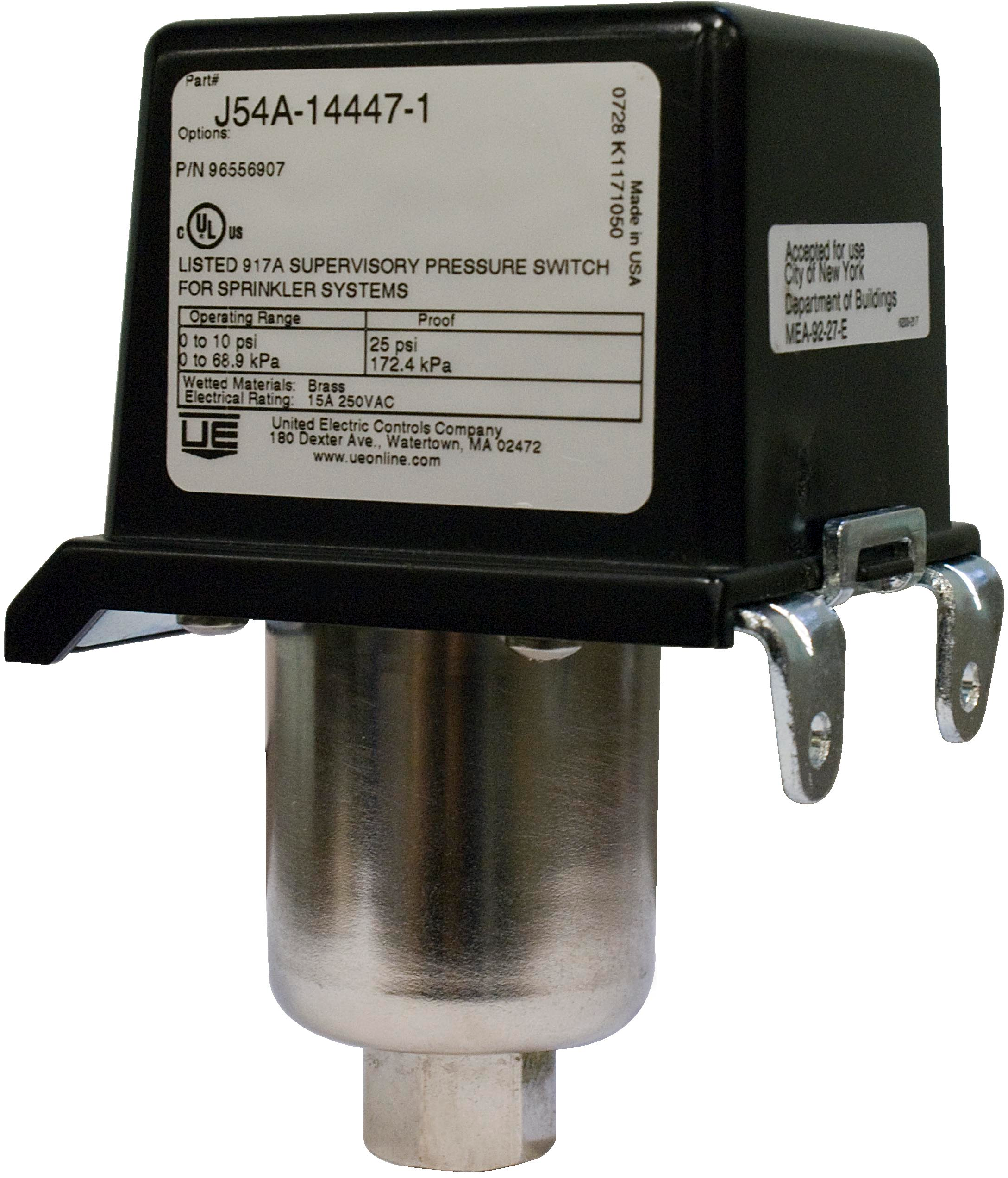

  • UE 54 Series

The 54 Series offers the OEM a combination of reliable performance and low cost. Available in pressure and temperature versions, with single or dual SPDT outputs and enclosed or open frame (skeleton) construction, the 54 Series family provides design versatility.

Approvals & certificates

  • CE CE
  • PED PED
  • UL UL
  1. Features
  2. Specification
  3. Downloads
  • Aplications:

    The 54 has been field-proven in a wide variety of OEM applications, including medical, laboratory, fire protection and heating equipment.

    Features:

    • Compact size
    • Wide Selection of Adjustable Ranges
    • Choice of one or two switch outputs
    • Adjustable or narrow deadband options
    • Reference dial or hex screw-type setting

    Ranges:

    • Pressure: -1 to 413,7 bar
    • Temperature: -90 to 343.3°C

    • Variable pressure, temperature
    • Output signal VAC switch, VAC switch
    • Repeatablity 1%, 1%, 1.5%, 1.5%
    • ATEX none, none
    • Process connection 1/4 NPT male, 1/4 NPT male, 1/2 NPT male, 1/2 NPT male, 1/8 NPT female, 1/8 NPT female, 1/4 NPT female, 1/4 NPT female
    • Sensor / wetted parts material 304, 304, copper, copper, Buna N / NBR, Buna N / NBR, brass, brass
    • Seals Buna N / NBR, Buna N / NBR
    • Electrical connection leadwires, leadwires
    • Housing Lexan™, Lexan™
  • `
    1. UE LVD CE Declaration

      206kb | ENG

    2. UE PED CE Declaration

      96kb | ENG

    3. UE Short form catalogue

      14MB | ENG

    4. UE 54 Series Datasheet

      2.8MB | ENG

    5. UE 54 Series temperature Installation Manual

      638kb | ENG

    6. UE 54 Series pressure Installation Manual

      440kb | ENG

Similar products

  1. Economic OEM switches

    24 Series Economic OEM switches

    Pressure, vacuum, and differential pressure switches for simple OEM applications

    details
  2. OEM presssure switches

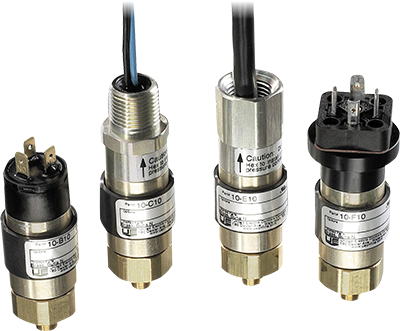

    Spectra 10 OEM presssure switches
