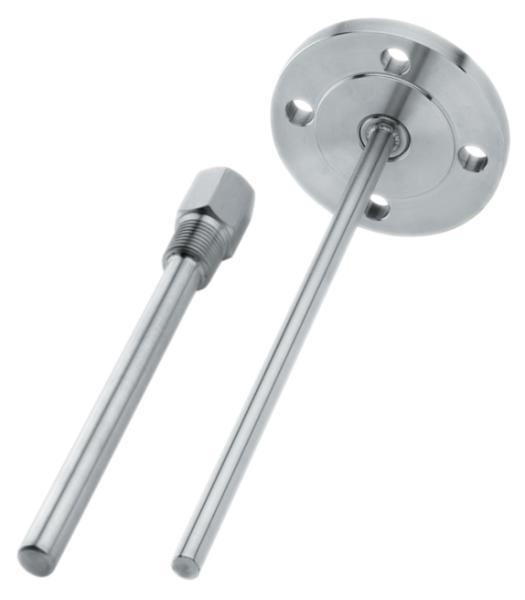

W10, W20, W82 Built-up thermowells, straight shank

Nuova Fima

Nuova Fima

Spawana osłona termometryczna NACE

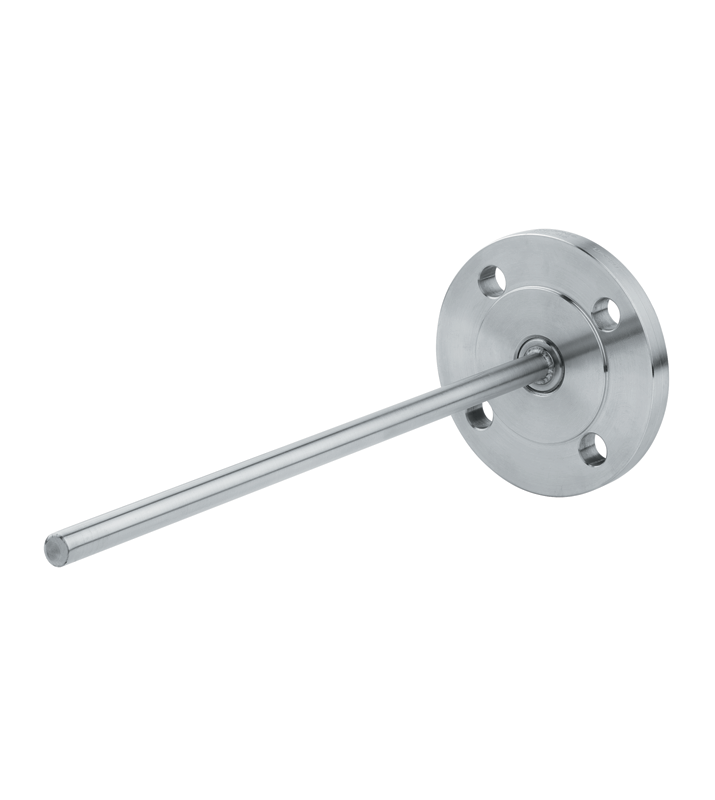

  • W82 Built-up thermowells, straight shank with flange connection
  • W10-W20 Built-up thermowells, straight shank with threaded connection

Basic thermowells for low parameters on process industry

Threaded and flange process connection.

Construction materials: stainless steel, Monel, Hastelloy, Duplex and many other

Maximum process pressure 25 bar @ 400'C

Approvals & certificates

  • CE CE
  • NACE NACE
  • ATEX Ex c ATEX Ex c
  1. Features
  2. Specification
  3. Downloads
  • Thermowells are used to to protect the measuring instrument from corrosion, high pressure or hgih fluid velocity and to allow the measuring instrument removal for recalibration or replacement without affecting the process system.

    The W10-W20-W82 serie includes thermowells with threaded process connection. TheW82 serie includes bar-stock thermowells with flanged process connection. These thermowells are suitable for low/medium work intensity.

    • process connection: threaded, flange
    • construction materials: stainless steel, Monel, Hastelloy, Duplex and many other
    • ATEX version
    • NACE version
    • maximum insertion lenght: 5000 mm
    • maximum process pressure: 25 bar at 400 st. C
    • Variable pressure, temperature
    • ATEX Ex c
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, 1-1/2 BSPT male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 2 NPT male, other
    • Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, Monel, Duplex
  • `
    1. NF Data Sheet W10-20

      115kb | ENG

    2. NF Data Sheet W82

      110kb | ENG
