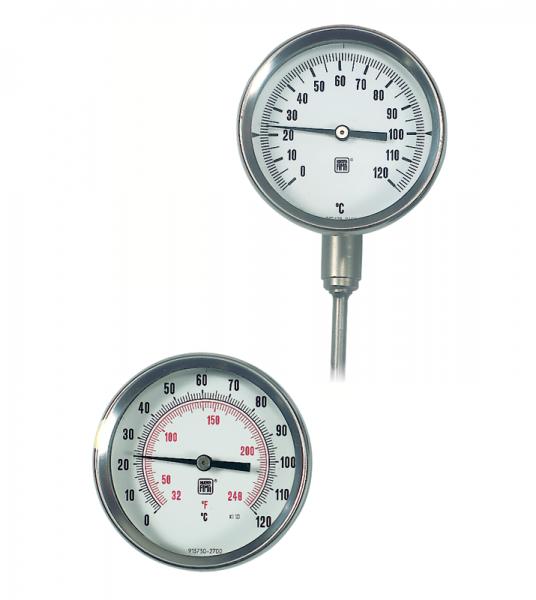

TB7 Bimetalic thermometers

Nuova Fima

Basic type of bimetalict thermometers who is used of Industry

Accuracy class: 2,0

Many configurations of process connection

These instruments are designed for use in chemical, petrolchemical processing industries.
They are built to resist the most severe operating conditions created by the environment and the process medium. An TIG welded case/bulb strengthens the whole construction.
- all stainless steel construction
- measuring range: -10...450 st.C
- accuracy class: 2,0
- dry or filled version
- several type of procces connection: lower, back, every angle
- maximum insertion lenght is 250 mm
- Variable temperature
- Process connection 1/2 BSPP male, 1/2 NPT male
- Sensor / wetted parts material 316/316L
- Housing stainless steel
- Ingress protection rating IP55
`
1. NF TB7 Datasheet

  146kb | ENG
