TB8 Bi-metal thermometers

Nuova Fima

Nuova Fima

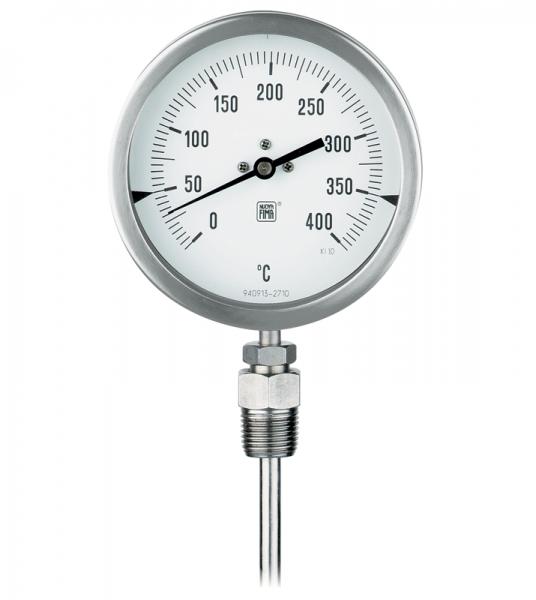

Termometr bimetaliczny TB8

Basic type of bimetalict thermometers who is used of Industry

Accuracy class: 1,0

Many configurations of process connection

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex c ATEX Ex c
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • These instruments are designed for use in chemical, petrolchemical processing industries.
    They are built to resist the most severe operating conditions created by the ambient environment and the process medium. An TIG welded case/bulb strengthens the whole construction. A leak tight fit is ensured if the instrument is filled with a dampening fluid to prevent damage due to vibration.

    • all stainless steel construction
    • measuring range: -50...600 st.C
    • accuracy class: 1,0
    • dry or filled version

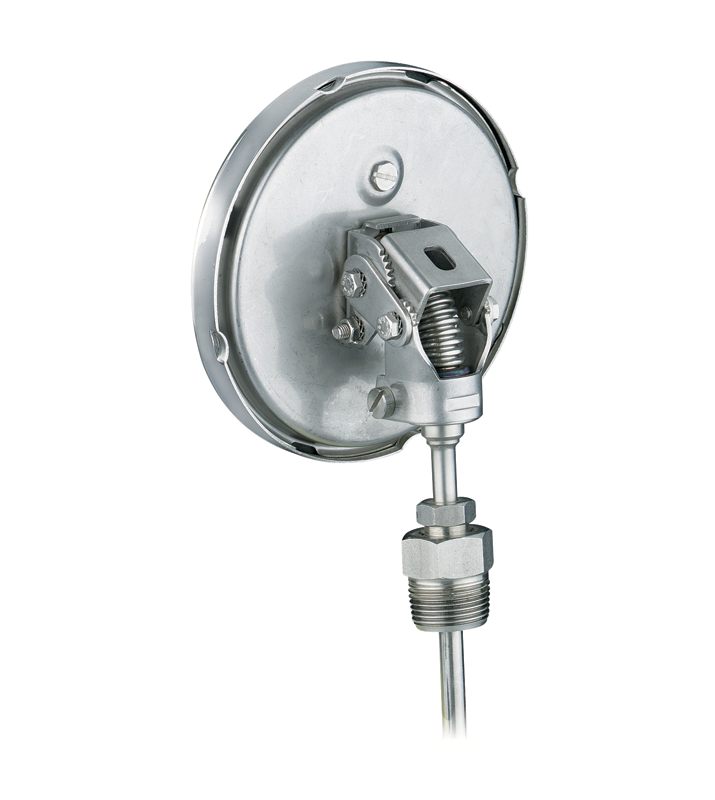

    • several type of procces connection: lower, back, every angle
    • maximum insertion lenght is 900 mm

    • Variable temperature
    • Accuracy 1,0%

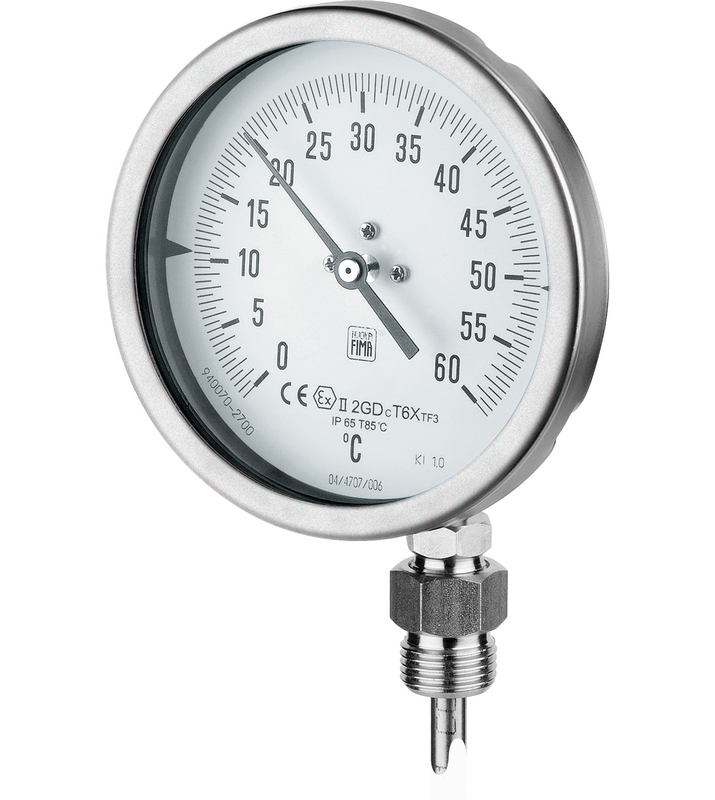

    • ATEX Ex c
    • Process connection 1/2 BSPP male, 3/4 BSPP male, 1/2 NPT male, 3/4 NPT male, other
    • Sensor / wetted parts material 316/316L
    • Housing stainless steel
    • Ingress protection rating IP65, IP55
  • `
    1. NF TB8 Datasheet

      138kb | ENG

    2. NF TB8 Datasheet ATEX

      643kb | ENG
