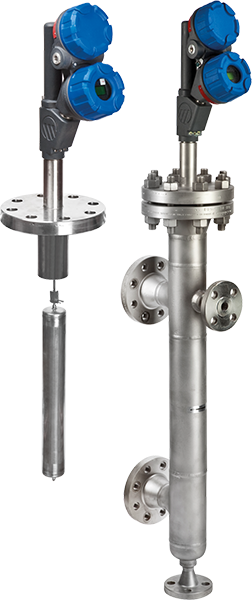

E4 Modulevel® Electronic displacer transmitter

Magnetrol International

Magnetrol International

Elektroniczne, nurnikowe przetworniki poziomu Modulevel E4 Magnetrol

4th generation level, interface and density displacer transmitter.

E4 Modulevel® level transmitters in measuring use Linear Variable Differential Transformer sensor. Use of LVDT has many advantages over classic design displacer transmitters with torque tube.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • FM FM
  • IECEx IECEx
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  • HART® HART®
  1. Features
  2. Specification
  3. Applications
  4. Downloads
  • The E4 Modulevel® model is a modernized version of the E3 Modulevel® displacer from Magnetrol.

    The operating principle of the displacer level transmitter is based on the buoyancy phenomenon of a selected rod called a displacer, immersed in the measured liquid. The buoyancy force depends on the level and is converted into an electrical output signal corresponding to the measurement range. E4 Modulevel® transmitters use a linear displacement sensor LVDT, which moves with the change of level, causing a change in magnetic induction. This is then recorded and converted into an output signal. The advantages of this solution comparing to the solution based on the torque tube are described in this article.

    A major advantage of liquid level measurement using the buoyancy method is the accurate measurement of the level or interface level in applications where foam, very high pressure and temperature or turbulence of the medium occur.

    E4 Modulevel® transmitters comply with the IEC 61508 standard and can be used in SIS automation systems with a SIL 2 / SIL 3 protection level.

    Features


    • measuring ranges: up to 3 m
    • medium temperature: -200 to 445°C
    • maximum pressure: up to 348 bar
    • bench calibration
    • power supply in an intrinsically safe two-wire analog loop 4-20 mA
    • local LCD display with 4 programming buttons
    • possibility of any corrections to the density of the measured medium without stopping the process
    • transmitter head rotatable by 360°, removable "on the move"
    • integral or remote electronics housing
    • medium density: 0.23 to 2.2 kg/dm³
    • linearity: ± 0.5% range
    • repeatability: ± 0.20% of range
    • possibility of delivery with external bypass chamber
    • certificate of safety integrity SIL 2 / SIL 3

    • Variable density, level, interface level, volume
    • Output signal 4..20 mA analogue
    • Digital communication HART®
    • Accuracy 0.5%
    • Repeatablity 0.2%
    • ATEX Ex i, Ex d
    • Local display yes
    • Process connection DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing aluminum
    • Ingress protection rating IP66, IP67
  • `
    1. Magnetrol E4 Modulevel Datasheet

      1013kb | ENG

    2. Magnetrol E4 Modulevel HART Manual

      3.3MB | ENG

    3. Magnetrol E4 Modulevel ATEX Exd Exi Certificate

      1.4MB | ENG

    4. Magnetrol E4 Modulevel FMEDA SIL Report

      761kb | ENG

    1. Alternative for displacer with torque tube

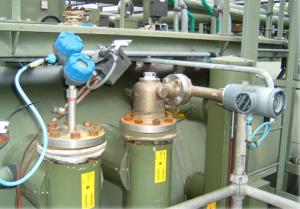

      Alternative for displacer with torque tube

      Displacers with torque tube are common level measurement devices in industrial applications. Their complicated mechanical design causes a lot of problems in use. Magnetrol's E3 Modulevel® displacer transmitters have no torque tube but LVDT (Linear Variable Differential Transformer) which makes these units easy to use and eliminates old generation transmitters' disadvantages.

      details

Similar products

  1. New generation of magnetostrictive transmitter

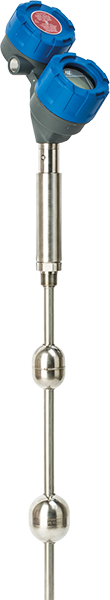

    Jupiter® JM4 New generation of magnetostrictive transmitter

    Advanced new generation magnetostrictive level and interface transmitter

    details
  2. Electronic displacer transmitter

    E3 Modulevel® Electronic displacer transmitter

    Modern level, interface and density displacer transmitter

    details
  3. Magnetic level gauge for demanding applications

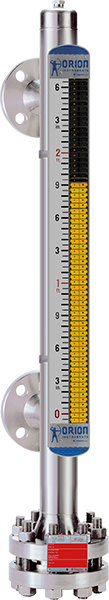

    Atlas™ Magnetic level gauge for demanding applications
