Atlas™ Magnetic level gauge for demanding applications

Magnetrol International

Magnetrol International

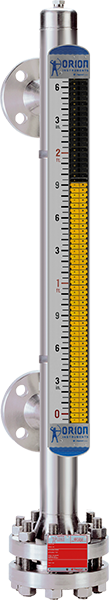

Poziomowskaz magnetyczny Atlas Magnetrol

Atlas™ is a version of magnetic level gauge designed for processes with high temperatures and pressures.

The biggest advantage of this magnetic level indicator version is 12 different configuration styles including top mount construction.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex c ATEX Ex c
  • FM FM
  1. Features
  2. Specification
  3. Downloads
  • Atlas™ is a version of magnetic level gauge designed for processes with high temperatures and pressures.

    The biggest advantage of this magnetic level indicator version is 12 different configuration styles available including top mount construction.

    Magnetic level indicator Atlas™ is a single chamber design with either a 2”, 2.5”, or 3” chamber diameter. Various of process connections types are available including possibility of custom made as per customer requirements.

    Advantages

    • Measuring range: up to 15 m
    • Medium temperature: -196 to 540 °C
    • Maximum pressure: 310 bar
    • Minimum medium density: 0,25 kg/dm³
    • Different indication rail designs available
    • Special design of indication rail flaps which prevents their 360° rotation
    • Optional steam or electrical tracing of float chamber
    • Optional scale of indication rail in m/cm
    • Optional level switches or transmitters
    • Available flange, threaded and welded connections
    • Custom float designs
    • Cryogenic designs of magnetic level indicator available

    • Variable level, interface level
    • ATEX Ex c
    • Process connection 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/2 NPT male, 2 NPT male, 1/2 NPT female, other
    • Sensor / wetted parts material 316/316L, 304, Hastelloy, Monel, titanium, PP, CPVC, Kynar® / PVDF
  • `
    1. Magnetrol Atlas Datasheet

      4.8MB | ENG

    2. Magnetrol Atlas User manual

      480kb | ENG

    3. Magnetrol Atlas Certificate ATEX Ex c

      135kb | ENG

    4. Magnetrol Aurora Atlas Gemini Datasheet

      6.3MB | ENG

    5. Magnetrol Product Line Quick Reference

      4.9MB | ENG
