Jupiter® JM4 New generation of magnetostrictive transmitter

Magnetrol International

Magnetrol International

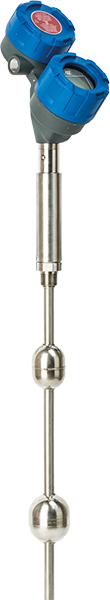

Zaawansowany przetwornik magnetostrykcyjny Jupiter JM4 Magnetrol

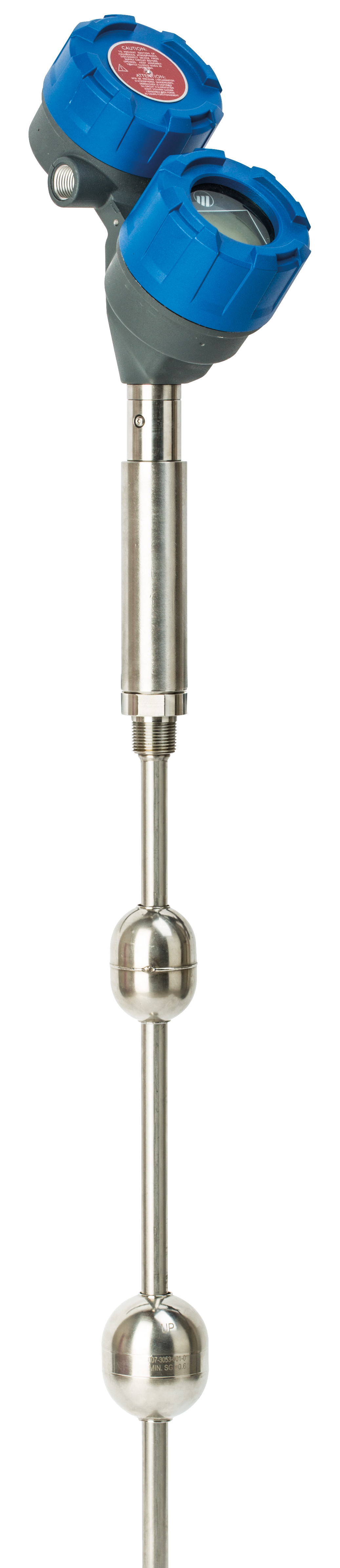

  • Jupiter® JM4 with probe for direct mounting into the vessel

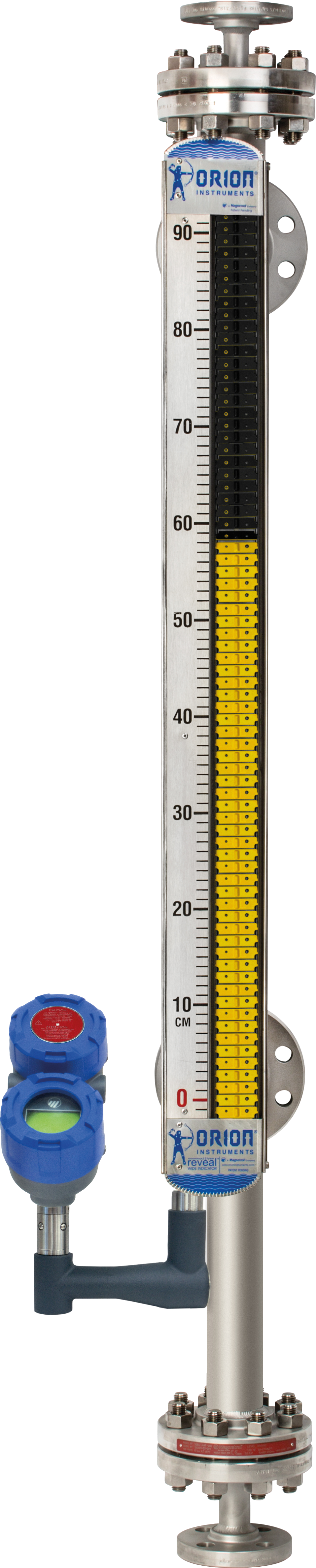

  • Jupiter® JM4 mounted externally on magnetic level indicator Vector™

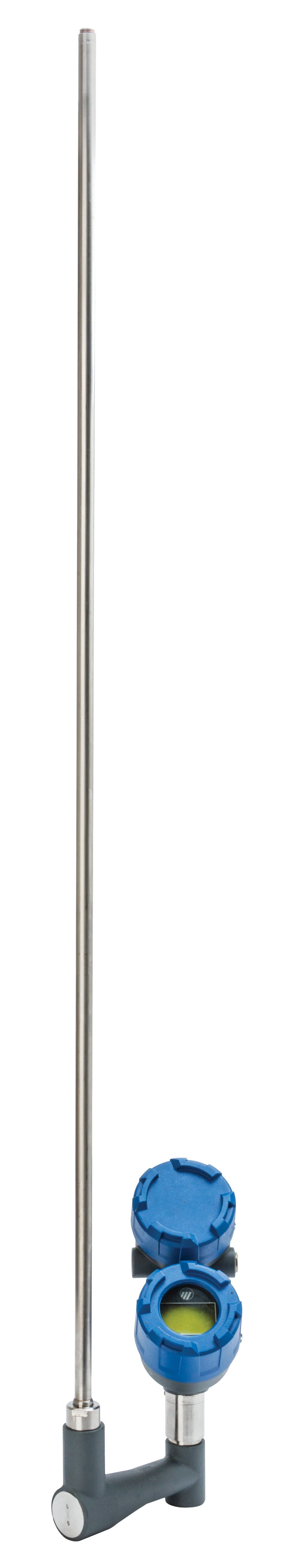

  • Jupiter® JM4 for external mounting on magnetic level indicator chamber

Advanced new generation magnetostrictive level and interface transmitter.

Due to utilization of "smart probe" automatic calibration of connected transmitter head is possible based on configuration data stored in probe memory eliminating the need for calibration at the field.

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • ATEX Ex tD ATEX Ex tD
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • LR LR
  • HART® HART®
  • FF FF
  1. Features
  2. Specification
  3. Downloads
  • Jupiter® JM4 is an advanced new generation magnetostrictive level transmitter in which due to utilization of "smart probe" automatic calibration of connected transmitter head is possible based on configuration data stored in probe memory eliminating the need for calibration at the field.

    Jupiter® JM4 may be mounted directly into the vessel or externally on magnetic level indicator.

    Ergonomic and innovative dual compartment enclosure (separate compartment for electronics and wiring) enables easy wiring, configuration and data display.

    Advantages

    • Measuring ranges: up to 10 m
    • Medium temperature: -196 to 450 °C
    • Maximum pressure: 207 bar for direct insertion
    • Linearity: ±0,01% of range
    • Repetability: ±0,005% of range
    • Accuracy: ±1,3 mm
    • No maximum pressure for external mounted version
    • Configuration "at desk"
    • 2-wire loop powered intrinsically safe level transmitter
    • Local graphic LCD with 4 programming buttons
    • Echo curve display on LCD in real-time
    • Integral or remote electronics
    • Adjustable damping: from 0 to 10 s
    • Advanced diagnostics
    • "Smart" probes with configuration data storage in memory
    • 310° rotable, dis-connectable transmitter head

    • Variable pressure, level, interface level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™
    • ATEX Ex i, Ex d, Ex tD
    • Local display yes
    • Process connection 1 BSPP male, 3/4 NPT male, 2 NPT male, other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, titanium, PTFE
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Jupiter JM4 Certificate ATEX Ex ia Ex tb

      158kb | ENG

    2. Magnetrol Jupiter JM4 Datasheet

      6.4MB | ENG

    3. Magnetrol Jupiter JM4 User manual Foundation Fieldbus

      4.6MB | ENG

    4. Magnetrol Jupiter JM4 User manual HART

      8.6MB | ENG

    5. Magnetrol Jupiter JM4 User manual SIL

      1.2MB | ENG

    6. Magnetrol API 2350 Recommendations DE

      1.1MB DE

    7. Magnetrol API 2350 Recommendations EN

      6.2MB | ENG

    8. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Magnetic level indicator with guided wave radar chamber

    Gemini™ Magnetic level indicator with guided wave radar chamber

    Magnetic level indicator connected with separate measuring chamber of Eclipse® guided wave radar

    details
  2. Magnetic level gauge for demanding applications

    Atlas™ Magnetic level gauge for demanding applications

    Magnetic level gauge designed for processes with high temperatures and pressures

    details
  3. Magnetic level indicator

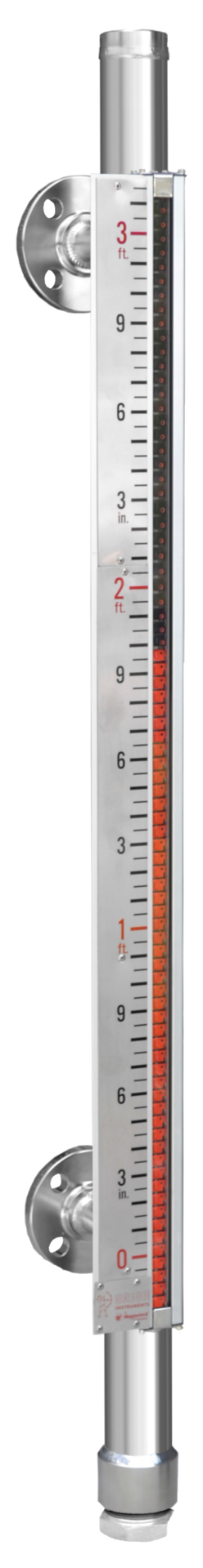

    Vector™ Magnetic level indicator
