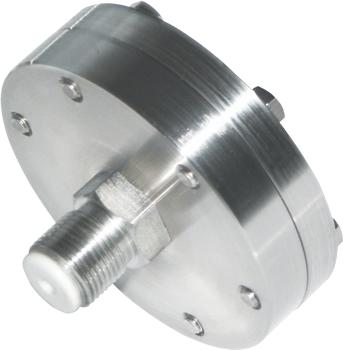

STL Screwed diaphragm seals

MERCON

MERCON

Gwintowy separator membranowy MERCON STT

Screw diaphragm seals are used for pressure measuring in industrial applications for high viscosity, chemical aggressive or crystallizing medium.

Wetted parts is PTFE

Maximum pressure for special version - 25 bar.

  1. Features
  2. Specification
  3. Downloads
  • Screw diaphragm seals are used for pressure measuring in industrial applications for high viscosity, chemical aggressive or crystallizing medium.

    In the standard version, pressure measuring range up to 16 bar.

    In the special version - up to 25 bar

    Application
    • Chemical industry
    • Petrochemical industry
    • High corrosive media

    Features

    • Internal diaphragm
    • Screwed construction separator
    • The diameter of the diaphragm is greater than the nominal diameter
    • Threaded connection
    • Weted parts covered PTFE
    • The diaphragm it's made of PTFE copolymer
    • A wide choice of connections for measuring instrument
    • Several types of steel for the body
    • The applicability of the reinforcing capillary made of stainless steel
    • The applicability of the heatsink
    • Several types of filling liquid measuring system



    • Variable pressure
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 1-1/2 NPT male, 2 NPT male, 1/8 NPT female, 1/4 NPT female, 1/2 NPT female, other
    • Sensor / wetted parts material PTFE
  • `
    1. MERCON STL Datasheet

      159kb | ENG

    2. MERCON STL Karta katalogowa

      160kb | POL
