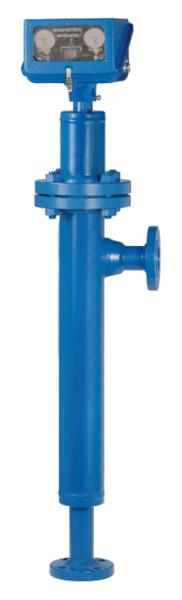

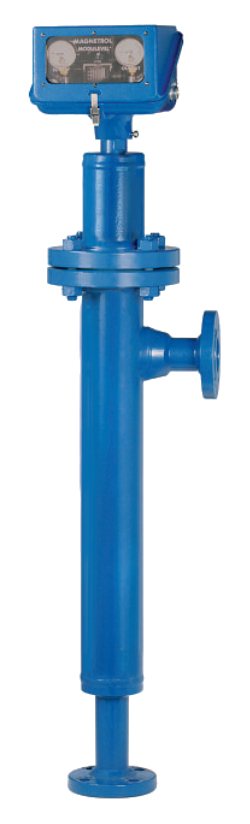

Modulevel® Pneumatic displacer transmitter

Magnetrol International

Magnetrol International

Pneumatyczny przetwornik nurnikowy Modulevel Magnetrol

Pneumatic displacer liquid level and interface transmitter Modulevel® utilizes buoyancy force acting on immersed displacer in the liquid to detect and convert liquid level changes to proportional pneumatic signal output.

Solutions utilized in the design of pneumatic displace Modulevel® guarantee a stable measurement in applications where medium turbulence, foam or high pressure and temperature are present.

Recommended for use in old automation systems.

  1. Features
  2. Specification
  3. Downloads
  • Pneumatic displacer transmitter Modulevel® utilizes buoyancy force acting on immersed displacer in the liquid to detect and convert liquid level changes to proportional pneumatic signal output.

    Operating principle is based on conversion buoyancy force of medium during level change to linear movement of displacer which due to magnetic coupling is converted then to rotary movement of mechanism which regulates proportionally pressure in the pneumatic system.

    Solutions utilized in the design of pneumatic displace Modulevel® guarantee a stable measurement in applications where medium turbulence, foam or high pressure and temperature are present.

    Advantages

    • Measuring ranges; up to 3 m
    • Medium temperature: -100 do 370 °C
    • Maximum pressure: up to 294 bar
    • Medium density: 0,11 to 2,2 kg/dm³
    • Minimum medium density difference for interface: 0,10 kg/dm³
    • Transmitter housing can be dismantled without depressurizing the vessel
    • 360° rotable housing simplifying pneumatic piping hookup
    • Easy calibration with no need for level simulation
    • Accurate output signal provided over a wide specific gravity range.
    • Pilot relay provides amplification of pilot pressure signal to speed valve response
    • Optional pneumatic to current interface transducer for use in electronic control applications
    • Optional differential gap (on-off) control.
    • Optional Hi-Lo liquid level electronic alarm signal
    • Side mounted cages available

    • Variable level, interface level
    • Output signal VDC switch, VAC switch, pneumatic
    • Process connection other
    • Sensor / wetted parts material 316/316L, 304, Hastelloy
    • Power supply external 24 VDC, external 230 VAC
    • Housing stainless steel, steel
    • Ingress protection rating IP55
  • `
    1. Magnetrol Pneumatic Modulevel User manual

      1.7MB | ENG

    2. Magnetrol Pneumatic Modulevel Datasheet

      500kb | ENG

    3. Magnetrol Product Line Quick Reference

      4.9MB | ENG
