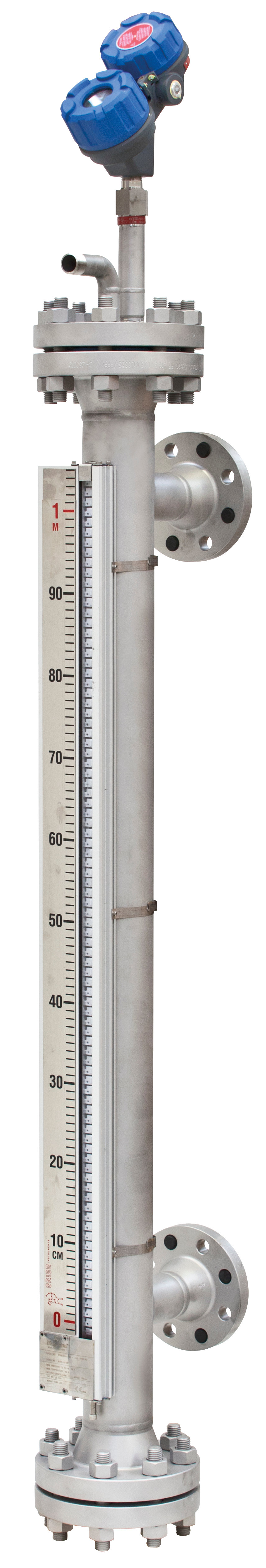

Aurora® Magnetic level indicator with guided wave radar

Magnetrol International

Magnetrol International

Poziomowskaz magnetyczny z wbudowanym radarem falowodowym Aurora Magnetrol

  • Magnetic level indicator Aurora® with guided wave radar Eclipse®

Magnetic level indicator with guided wave radar in a single chamber design.

Available 3” or 4” chamber is a float chamber of magnetic level indicator (MLI) and measuring chamber for guided wave radar Eclipse® with coaxial style probe also, enabling continuous level measurement and visual indication at the same time. There are 6 basic configuration styles and more than 15 material selections for the Aurora® magnetic level indicator.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex c ATEX Ex c
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • SIL 3 SIL 3
  • LR LR
  • HART® HART®
  • Profibus Profibus
  • FF FF
  1. Features
  2. Specification
  3. Downloads
  • Aurora® is a combination of conventional magnetic level indicator (MLI) with new generation guided wave radar Eclipse® developed for level measurement applications. Such design ensures redundant level measurement in a single chamber.

    Available 3” or 4” chamber is a float chamber of magnetic level indicator (MLI) and measuring chamber for guided wave radar Eclipse® with coaxial style probe also, enabling continuous level measurement and visual indication at the same time. There are 6 basic configuration styles and more than 15 material selections for the Aurora® magnetic level indicator.

    The unique design of Aurora®  magnetic level indicator guarantee accurate and repeatable level measurement in applications where media with low or changing dielectric constant and high pressure/temperature are present.

    Advantages

    • Measuring ranges: up to 5,7 m
    • Medium temperature: -196 to 400 °C
    • Maximum pressure: 310 bar
    • Rest technical data as per Atlas™ / Eclipse®

    • Variable level, interface level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™
    • Accuracy 0.1%, 0.5%
    • Repeatablity 2.5 mm
    • ATEX Ex i, Ex c, Ex d, Ex n
    • Local display yes
    • Process connection 1 NPT male, 1-1/2 NPT male, 2 NPT male, other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, titanium, PTFE, ceramic
    • Seals Viton® / FKM / FPM, Kalrez®, Aegis PF 128 / Simriz® SZ 485, borosilicate glass, PEEK, EPDM
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP66
  • `
    1. Magnetrol Eclipse 705 Certificate ATEX Ex d Ex t

      432kb | ENG

    2. Magnetrol Eclipse 705 Certificate ATEX Ex ia

      2.3MB | ENG

    3. Magnetrol Eclipse 705 Certificate ATEX Ex n

      952kb | ENG

    4. Magnetrol Eclipse 705 Certificate IECEx Ex d Ex t

      102kb | ENG

    5. Magnetrol Eclipse 705 User manual Fieldbus

      801kb | ENG

    6. Magnetrol Eclipse 705 User manual HART

      3.9MB | ENG

    7. Magnetrol Eclipse 705 User manual Profibus

      810kb | ENG

    8. Magnetrol Eclipse 705 User manual SIL 705 v3x

      696kb | ENG

    9. Magnetrol Eclipse 705 User manual SIL 705-51AX-XXX v3x

      531kb | ENG

    10. Magnetrol Eclipse 705 Datasheet

      2.8MB | ENG

    11. Magnetrol Eclipse cages Datasheet

      362kb | ENG

    12. Magnetrol Eclipse 705 Report FMEDA SIL

      869kb | ENG

    13. Magnetrol Eclipse 705 Certificate IECEx Ex i

      2.2MB | ENG

    14. Magnetrol Eclipse 705 Heavy Duty Datasheet

      2.2MB | ENG

    15. Magnetrol Aurora Datasheet

      348kb | ENG

    16. Magnetrol Aurora User manual

      239kb | ENG

    17. Magnetrol Aurora Certificate ATEX Ex c

      135kb | ENG

    18. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Magnetic level gauge for demanding applications

    Atlas™ Magnetic level gauge for demanding applications

    Magnetic level gauge designed for processes with high temperatures and pressures

    details
  2. Magnetic level indicator with guided wave radar chamber

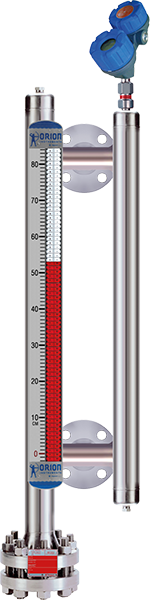

    Gemini™ Magnetic level indicator with guided wave radar chamber
