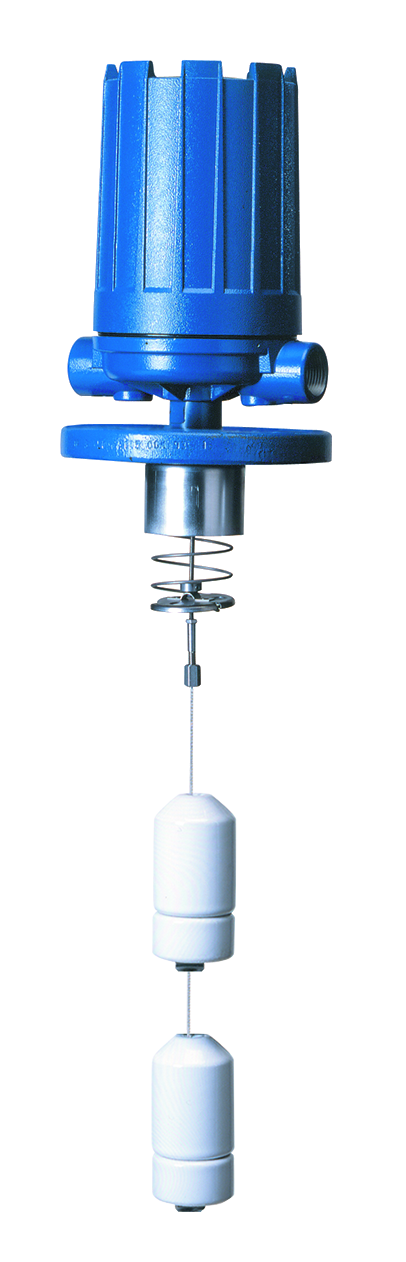

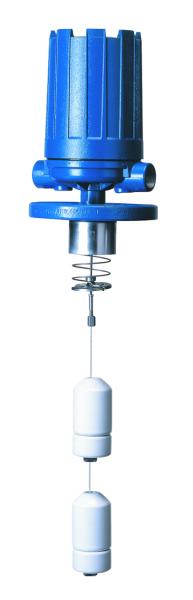

A15/A10/B15/B10/C10/C15 Multi-point displacer switches

Magnetrol International

Magnetrol International

Wieloprogowy sygnalizator nurnikowy Magnetrol

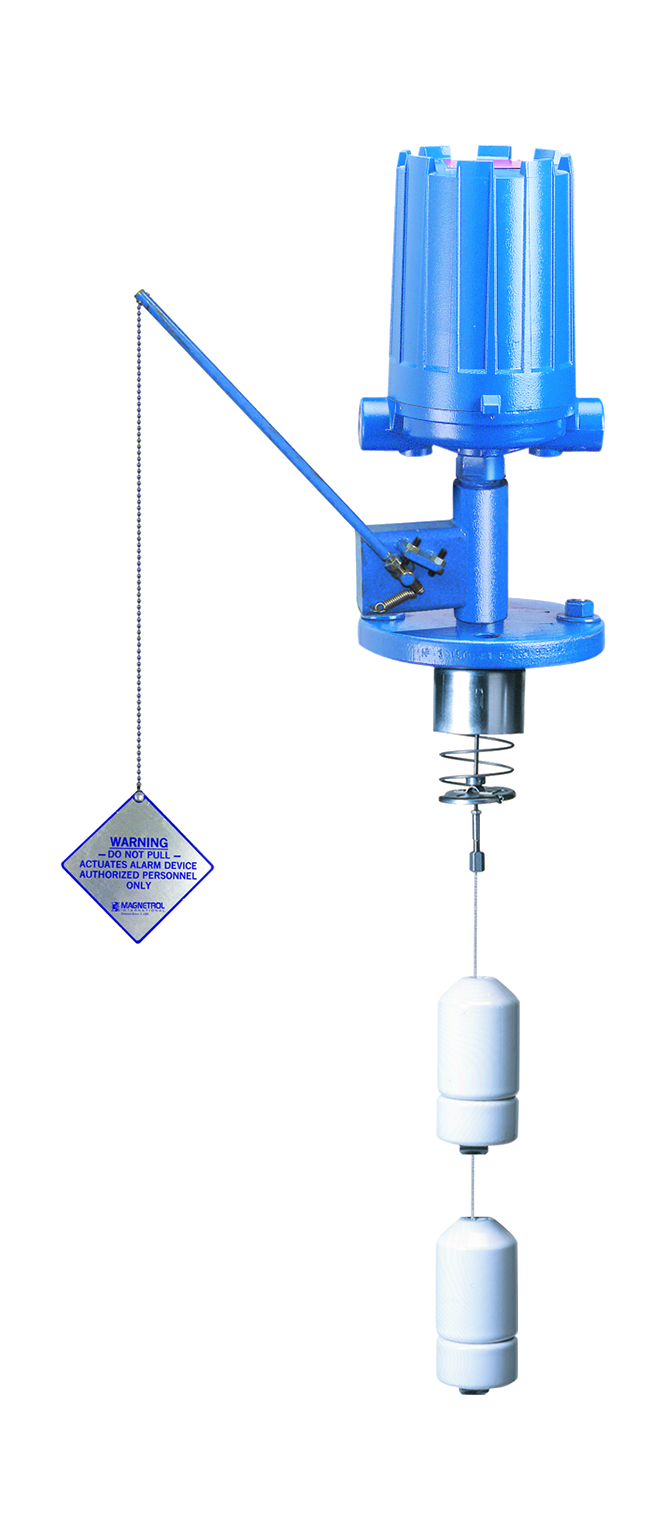

  • Two-point displacer switch with Proof-er® ground check

Displacer switches utilize buoyancy force acting on immersed displacers in the liquid to detect and convert liquid level changes to signal outputs.

Approvals & certificates

  • CE CE
  • PED PED
  • NACE NACE
  • ATEX Ex d ATEX Ex d
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • LR LR
  1. Features
  2. Specification
  3. Downloads
  • Operating principle is based on buoyancy force acting on displacers hung on suspension cable connected with spring. Increase in buoyancy force acting on displacers immersed in the liquid causes spring compression which then moves magnetic sleeve into magnet field which activates switch mechanism. Magnetic sleeve moves inside the non-magnetic tube which isolates switch mechanism from measured medium. Built-in spring stroke limit stops prevent “false alarms” caused by sudden liquid level changes.

    Depending on function available displacer switches can be divided into following types:

    Switches with narrow differential destined for switch point levels:

    • A15 – switch models with single switch for one switch point level
    • B15 – switch models with two switches for two switch point levels
    • C15 – switch models with three switches for three switch point levels

    Switches with wide differential destined for pump controls and/or switch point levels:

    • A10 – switch models with single switch for pump control
    • B10 – switch models with two switches for two pump controls or one switch point level and one pump control
    • C10 – switch models with three switches for three pump controls or one switch point level  and two pump controls or two switch point levels and one pump control

    Advantages

    • Measuring ranges: up to 6 m
    • Medium temperature: 40 to 260 °C
    • Maximum pressure: 55,1 bar
    • Minimum medium density: 0,4 kg/dm³
    • Displacers adjustable at any point along the suspension cable
    • Field adjustable set point and switch differential
    • Wide choice of displacer materials
    • Wide choice of housings and switch mechanisms
    • Standard anti-corrosive protection
    • Optional NACE construction, for interface applications and Proof-er® ground check
    • Variable level, interface level
    • Output signal VDC switch, VAC switch
    • ATEX Ex i, Ex d
    • Process connection other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, ceramic
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, steel
    • Ingress protection rating IP66, IP55
  • `
    1. Magnetrol V type switches User manual

      735kb | ENG

    2. Magnetrol Hermetically sealed switches User manual

      787kb | ENG

    3. Magnetrol Housings and switches of level switches User manual

      1.5MB | ENG

    4. Magnetrol Type J pneumatic switches User manual

      1010kb | ENG

    5. Magnetrol Type K pneumatic switches User manual

      703kb | ENG

    6. Magnetrol Displacer switches Certificate ATEX Ex d

      205kb | ENG

    7. Magnetrol Displacer switches Certificate ATEX Ex ia

      167kb | ENG

    8. Magnetrol Displacer switches Certificate IECEx Ex d

      141kb | ENG

    9. Magnetrol Displacer switches User manual

      690kb | ENG

    10. Magnetrol Displacer switches Report FMEDA SIL

      1.2MB

    11. Magnetrol Displacer switches Datasheet

      1.6MB | ENG

    12. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Float switches

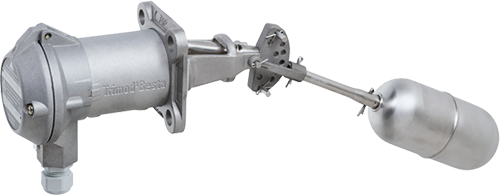

    A 01 091 Float switches

    Float switches with adjustable operating differential

    details
  2. Float switches

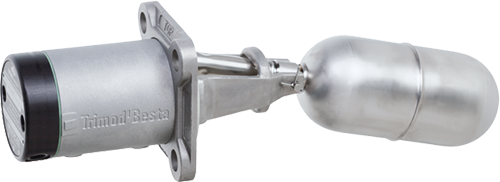

    M 01 041 Float switches
