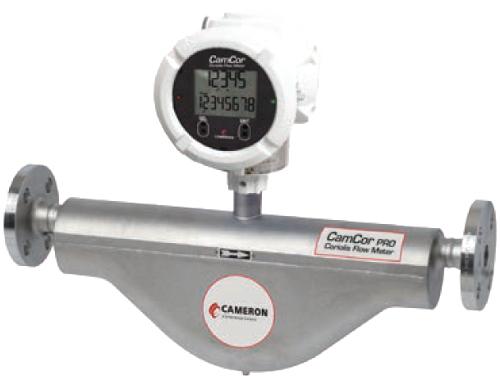

CamCor PRO Coriolis flow meters

Cameron (Schlumberger)

Cameron (Schlumberger)

Przepływomierze masowe Coriolisa CamCor PRO Cameron

The CAMERON CamCor PRO Series process coriolis flowmeter – featuring high-accuracy, shallow bow-shaped dual sensor tubes – is ideal for oilfield production applications. Our process-grade Coriolis flow meter offers high performance for accuracy, repeatability, wide flow range, low pressure loss, and safe design.

Approvals & certificates

  • CE CE
  • ATEX Ex d ATEX Ex d
  • IECEx IECEx
  • HART® HART®
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads
  • Features:

    • Shallow bow-shaped dual sensors maximize accuracy
    • Ranges: 0..600 kg/h to 0..48 t/h
    • Flow rate turndown up to 50:1
    • Flow rate uncertainty on liquids +/- 0.2% (+/- zero stability error)
    • Density uncertainty +/- 0.003 g/ml
    • Communications: Modbus RS-485 and HART compliant
    • Easy configuration via infrared sensors or EZ-Link interface software
    • Diagnostic check for pipeline vibration and media pulsation
    • DIN, ANSI or hygenic Tri-Clamp process connections

    • Variable density, flow, temperature
    • Output signal 4..20 mA analogue
    • Digital communication HART®, Modbus®
    • Accuracy 0.2%
    • Repeatablity 0.1%
    • Local display yes
    • Process connection other
    • Sensor / wetted parts material 316/316L
    • Power supply external 24 VDC
    • Electrical connection 3/4 NPT female
    • Housing aluminum
    • Ingress protection rating IP66, IP67
  • `
    1. Cameron CamCor Installation manual

      6.4MB | ENG

    2. Cameron CamCor Datasheet

      843kb | ENG

    3. Cameron CamCor PRO General specification

      1.8MB | ENG

    4. Cameron CamCor Modbus protocol Installation manual

      793kb | ENG
