J6 Series Switches with sensitive bellows

United Electric Controls

United Electric Controls

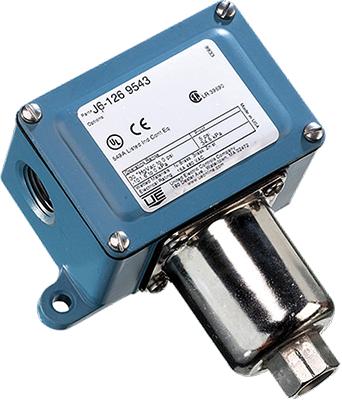

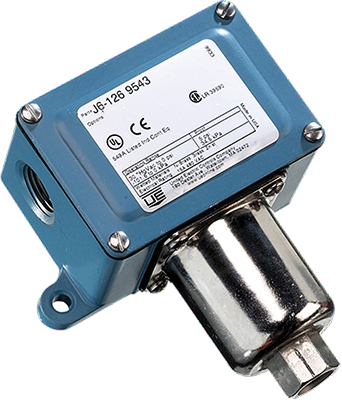

Sygnalizatory ciśnienia z mieszkiem J6 United Electric Controls

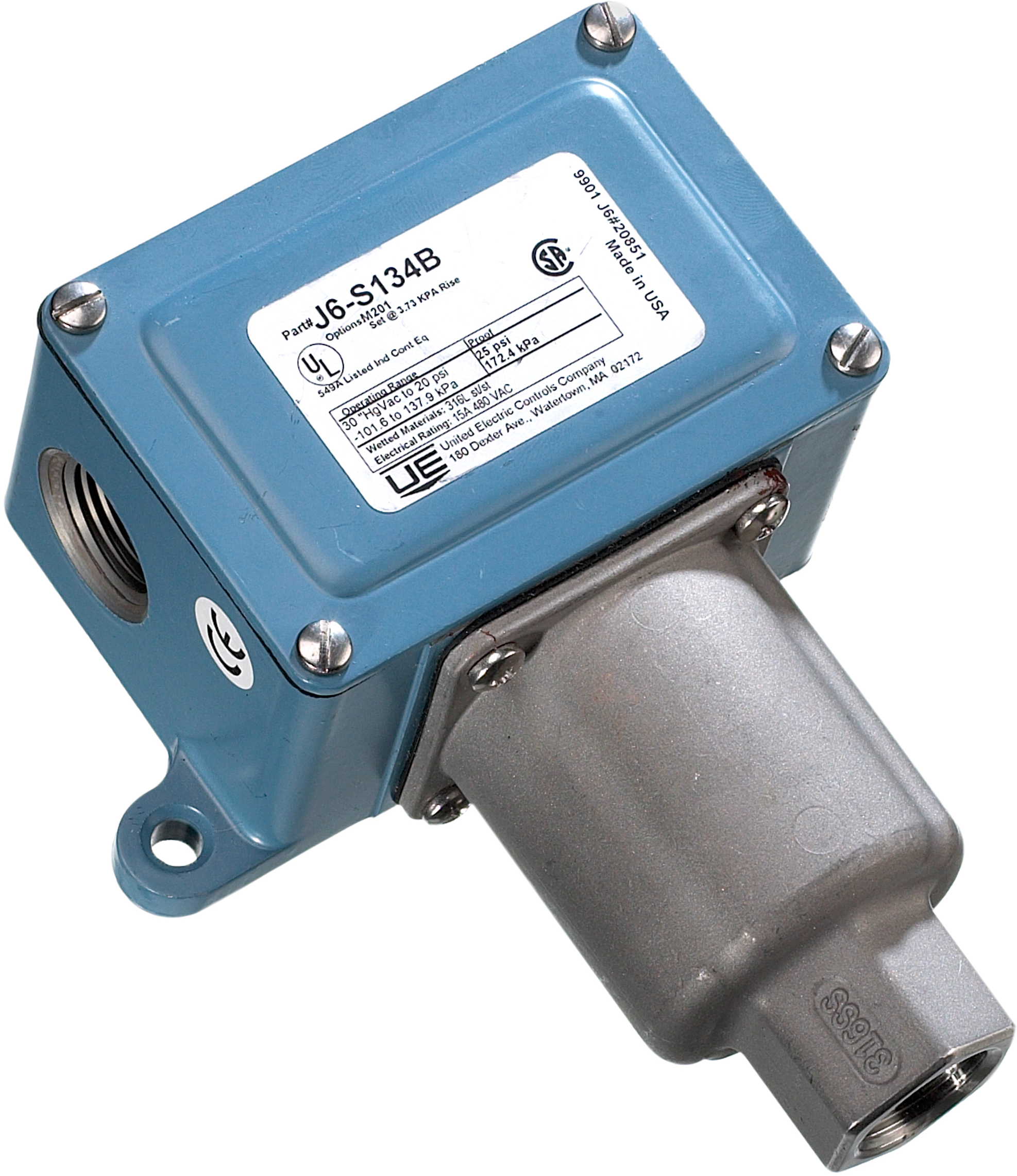

  • UE J6 Series

The J6 is a reliable, sensitive pressure switch with stainless steel or bronze bellows. Because of it the J6 series switches are characterised by set-point sensitivity and narrow or optional adjustable deadband. Compact design makes it perfect for process instalations and tought ambient conditions.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • IECEx IECEx
  • UL UL
  1. Features
  2. Specification
  3. Downloads
  • Aplications:

    The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

    Features:

    • Gasketed, Die Cast Aluminum Enclosure with Epoxy Coating
    • SPDT Switch Output
    • Adjustable deadband option for precise on-off control
    • Sealed, Isolated Metal Bellows Sensors

    Ranges:

    • Pressure: -1 to 414 bar
    • Variable pressure
    • Output signal VAC switch
    • Repeatablity 1%, 1.5%
    • ATEX Ex i
    • Process connection 1/4 NPT female, 1/2 NPT female
    • Sensor / wetted parts material 316/316L, 304, copper, phosphor bronze
    • Seals Buna N / NBR
    • Electrical connection 1/2 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `
    1. UE EAC Certificate

      1.8MB | ENG

    2. UE ATEX Ex ia certificate

      1.6MB | ENG

    3. UE IECEx Certificate

      435kb | ENG

    4. UE LVD CE Declaration

      206kb | ENG

    5. UE PED CE Declaration

      96kb | ENG

    6. UE Short form catalogue

      14MB | ENG

    7. UE J6 Series Installation Manual

      389kb | ENG

    8. UE J6 Series Datasheet

      2.3MB | ENG
