100 Series Industrial switches

United Electric Controls

United Electric Controls

Sygnalizator ciśnienia różnicy ciśnień lub temperatury 100 SIL 2 SIL 3 United Electric Controls

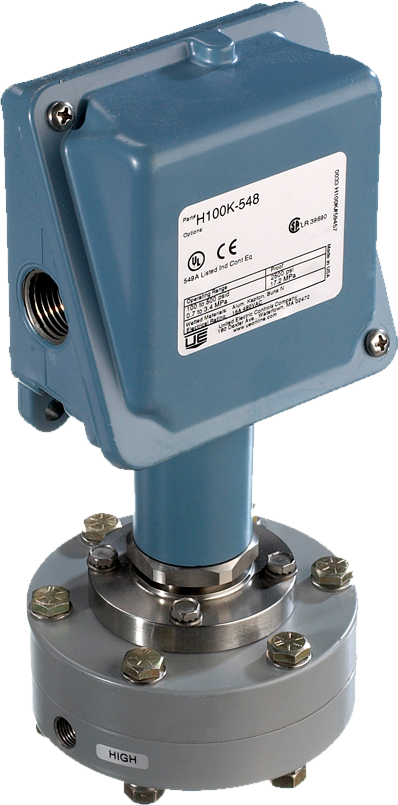

  • H100K - differential pressure switch

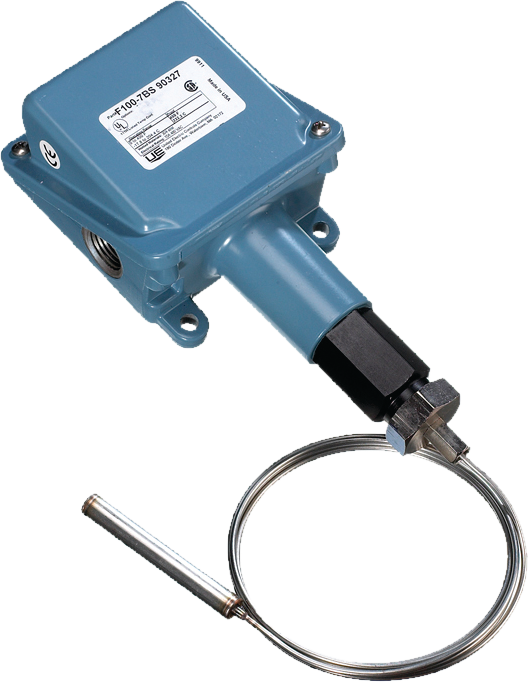

  • F100 - remote sensor temperature switch

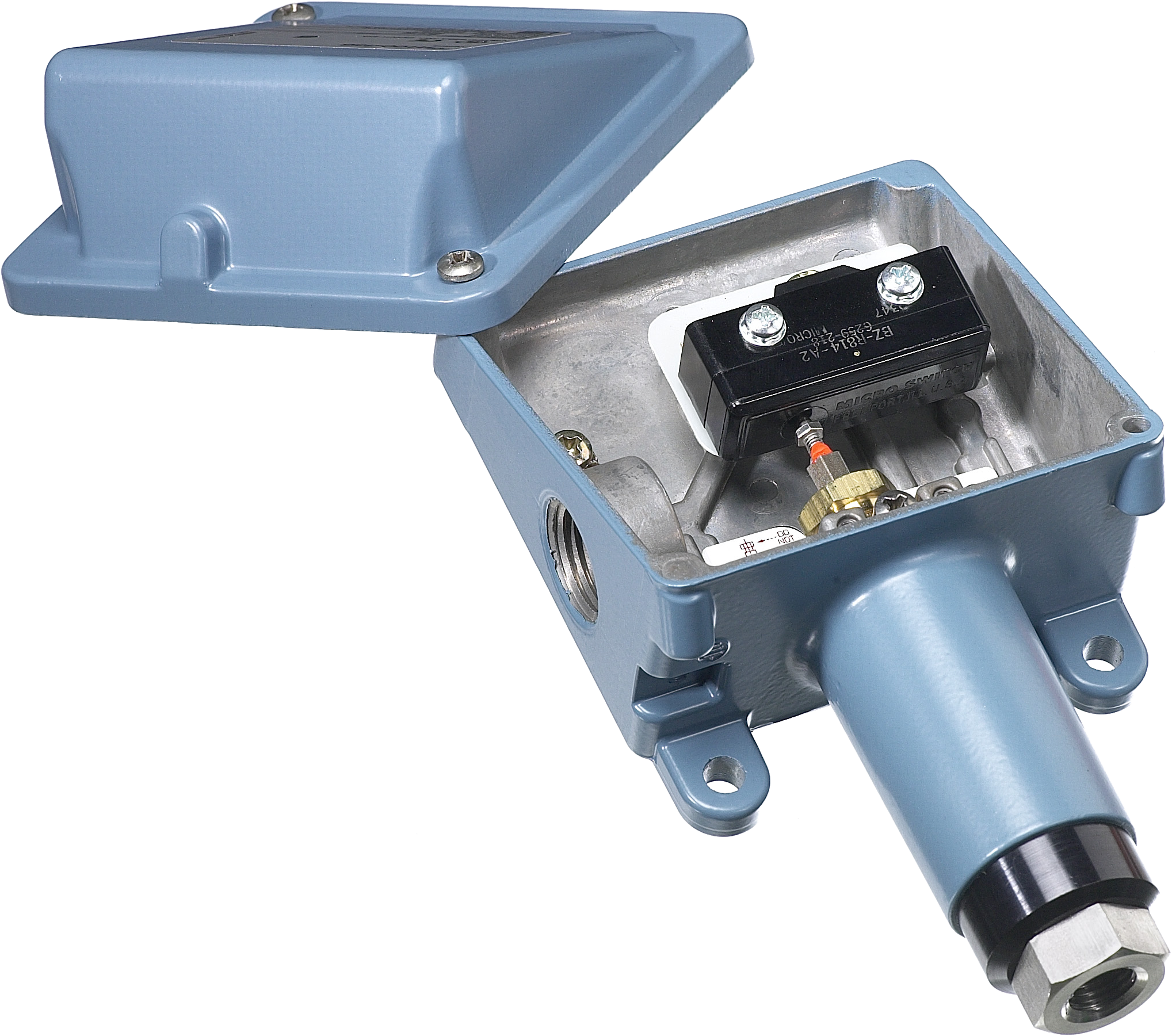

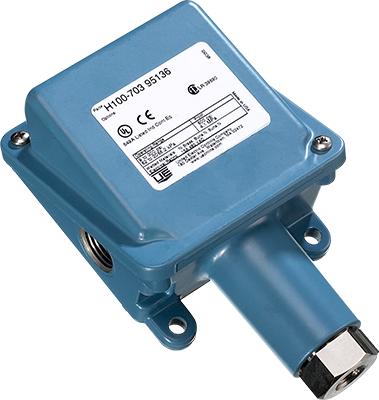

  • H100 - pressure switch (with cover off)

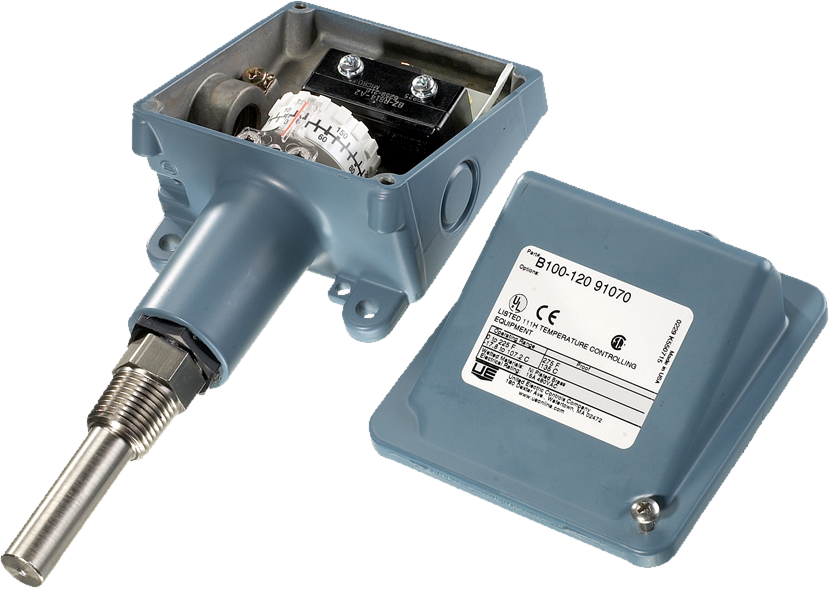

  • B100 - temperature switch (with cover removed)

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility.

A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • CQST CQST
  • EAC Ex EAC Ex
  • IECEx IECEx
  • PESO PESO
  • UL UL
  • cUL cUL
  • cULus cULus
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  1. Features
  2. Specification
  3. Downloads

  • Aplications:

    Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.

    Features:

    • Single switch (SPDT or DPDT) output
    • Welded stainless steel diaphragm models
    • Optional sensor material for corrosive media
    • Epoxy Coated and Gasketed Cast Aluminum Enclosure Type 4x
    • Polish stainless steel flush-mount connection
    • Pump switch models with wide adjustable deadband

    Ranges:

    • Pressure: -1 to 344,7 bar
    • “wc ranges: -746,7 to 622,3 mbar
    • Differential pressure: 0,5 mbar to 34,5 bar
    • Temperature: -117.8 to 343.3°C
    • Variable pressure, differential pressure, temperature
    • Output signal VDC switch, VAC switch
    • Repeatablity 1%, 1.5%, 2.5%
    • ATEX Ex i
    • Process connection 1/4 NPT female, 1/2 NPT female, other
    • Sensor / wetted parts material 316/316L, 304, Hastelloy, Monel, aluminum, phosphor bronze, PTFE, Buna N / NBR, brass, Viton® / FKM / FPM
    • Seals Buna N / NBR, Viton® / FKM / FPM
    • Electrical connection 1/2 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `

    1. UE EAC Certificate

      1.8MB | ENG

    2. UE ATEX Ex ia certificate

      1.6MB | ENG

    3. UE IECEx Certificate

      435kb | ENG

    4. UE ATEX Ex ia CE Declaration

      198kb | ENG

    5. UE LVD CE Declaration

      206kb | ENG

    6. UE PED CE Declaration

      96kb | ENG

    7. UE Short form catalogue

      14MB | ENG

    8. UE 100 Series PESO Certificate

      141kb | ENG

    9. UE 100 Series pressure Installation Manual

      383kb | ENG

    10. UE 100 Series temperature Installation Manual

      286kb | ENG

    11. UE 100 Series Datasheet

      2.6MB | ENG

    12. UE 100 Series SIL 2 certificate

      127kb | ENG

Similar products

  1. Switches with hermetically sealed snap switch

    117 Series Switches with hermetically sealed snap switch

    Switches that are an ideal choice for the most demanding applications

    details

  2. 1, 2 or 3 setpoint switches

    400 Series 1, 2 or 3 setpoint switches

    Vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities

    details

  3. Explosionproof switches

    120 Series Explosionproof switches

    A variety of pressure, vacuum, differential pressure and temperature ranges with ATEX Ex d approval

    details
