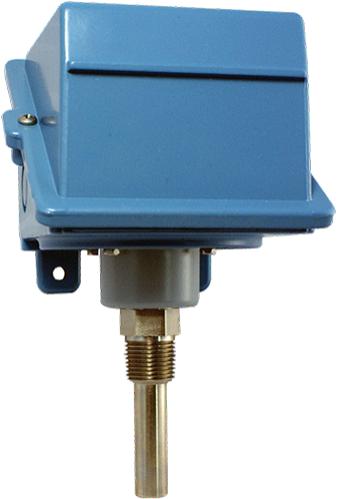

400 Series 1, 2 or 3 setpoint switches

United Electric Controls

United Electric Controls

Wieloprogowy sygnalizator ciśnienia, temperatury lub różnicy ciśnień 400 United Electric Controls

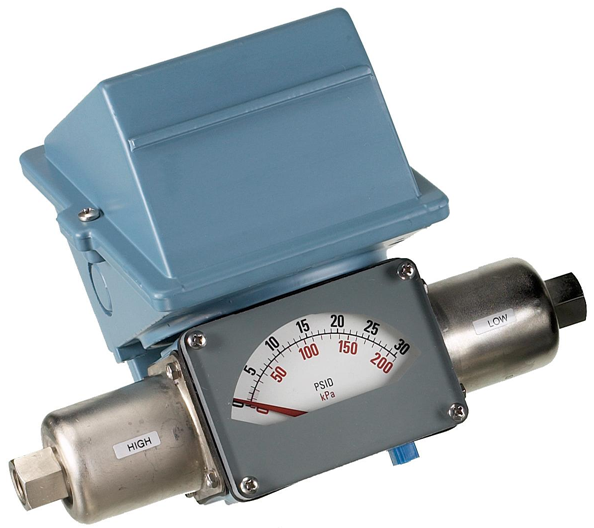

  • J400K - differential pressure switch

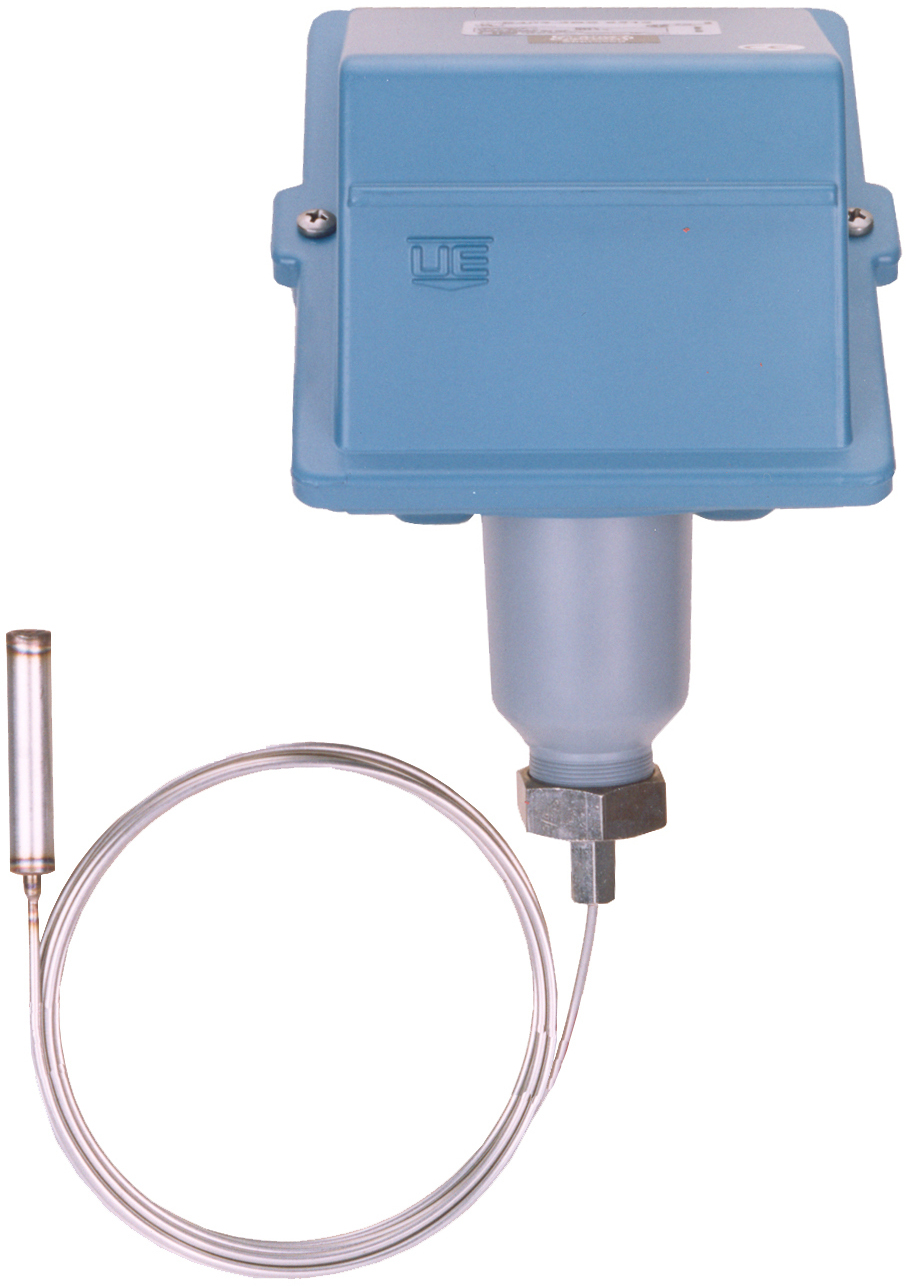

  • C400 - temperature switch

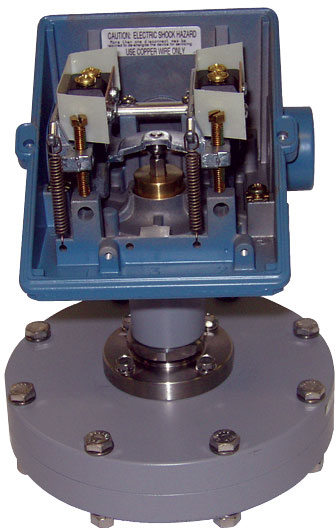

  • J400K - differential pressure switch (without cover)

The 400 Series consists of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities.

The 400 Series is popular in oil system and boiler security.

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • INMETRO INMETRO
  • UL UL
  1. Features
  2. Specification
  3. Downloads

  • Aplications:

    Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.

    Features:

    • 1, 2 & 3 switch outputs
    • Epoxy-coated enclosure designed to meet enclosure type 4X
    • Wide variety of pressure sensors and materials
    • Setting via reference dial or hex screw adjustment

    Ranges:

    • Pressure: -1,0 to 413,7 bar
    • "WC ranges: -746,7 to 622,3 mbar
    • Differential pressure: 2.5 mbar to 13,8 bar
    • Temperature: -117.8 to 343.3 °C

    • Variable pressure, differential pressure, temperature
    • Output signal VDC switch, VAC switch
    • Repeatablity 1.5%, 2.5%
    • ATEX Ex i
    • Process connection 1/8 NPT female, 1/4 NPT female, 1/2 NPT female
    • Sensor / wetted parts material 316/316L, 304, phosphor bronze, PTFE, Buna N / NBR, brass
    • Seals Buna N / NBR, Viton® / FKM / FPM
    • Electrical connection 3/4 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `

    1. UE EAC Certificate

      1.8MB | ENG

    2. UE ATEX Ex ia certificate

      1.6MB | ENG

    3. UE IECEx Certificate

      435kb | ENG

    4. UE ATEX Ex ia CE Declaration

      198kb | ENG

    5. UE LVD CE Declaration

      206kb | ENG

    6. UE PED CE Declaration

      96kb | ENG

    7. UE Short form catalogue

      14MB | ENG

    8. UE 400 Series pressure Installation Manual

      659kb | ENG

    9. UE 400 temperature Installation Manual

      461kb | ENG

    10. UE 400 Series Datasheet

      2.5MB | ENG

Similar products

  1. Industrial switches

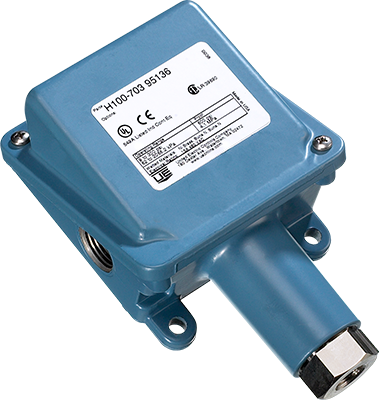

    100 Series Industrial switches

    Cost-effective pressure and temperature switch for process plants and OEM equipment

    details

  2. Explosionproof switches

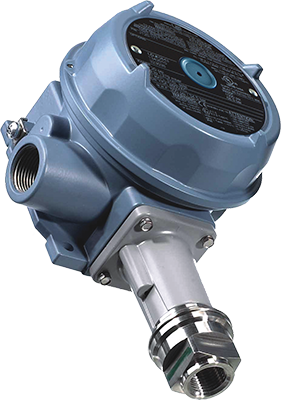

    120 Series Explosionproof switches

    A variety of pressure, vacuum, differential pressure and temperature ranges with ATEX Ex d approval

    details

  3. Switches with hermetically sealed snap switch

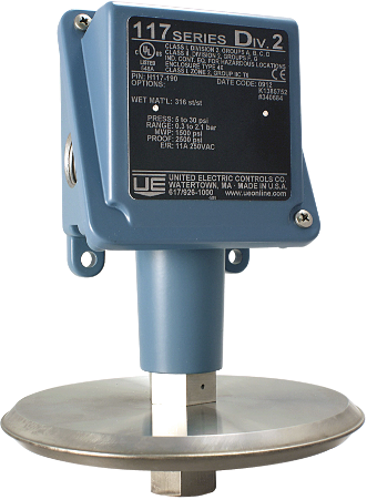

    117 Series Switches with hermetically sealed snap switch
