MiniWave Ultrasonic level transmitters

Hawk

Hawk

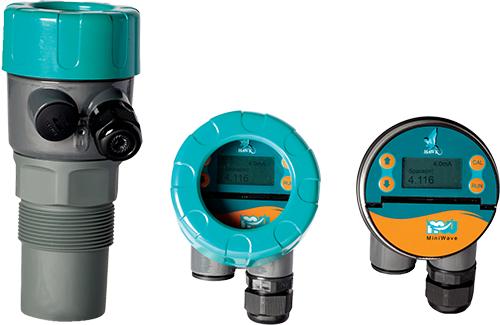

Ultradźwiękowy przetwornik poziomu MiniWave Hawk

The MiniWave is a non-intrusive level transmitter for measuring level of liquids. As a price leader, it does not compromise on good value; and provides effortless and intuitive operation. Easy and flexible mounting combined with high chemical compatibility and 12 metres (40ft) measuring range makes the MiniWave suitable in multiple applications in all industries.

Approvals & certificates

  • CE CE
  1. Features
  2. Specification
  3. Downloads
  • Principle of operation:

    The MiniWave emits an ultrasonic pulse, which is reflected from the surface of the liquid being measured. The reflected signal is processed using specially developed software to enhance the correct signal and reject false echoes. Adaptive sensitivity control allows the unit to dynamically adjust and improve the received echoes for the best possible measurement outcome.

    Features:

    • 2 wire 4-20mA with HART
    • Maximum range to 12 metres (40ft)
    • Non-contact measurement
    • Low cost per measuring point
    • Auto compensation for steam and signal losses
    • Adaptive sensitivity control
    • Volume linearization to tank shapes or 32 point table (requires PC connection with GoshawkII)
    • Automatic temperature compensation.


    • Variable level
    • Output signal 4..20 mA analogue
    • Digital communication HART®
    • Accuracy 0.25%
    • ATEX none
    • Local display yes
    • Process connection 2 NPT male, other
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female
    • Housing aluminum
    • Ingress protection rating IP67
  • `
    1. Hawk Short form catalogue

      12MB | ENG

    2. Hawk MiniWave CE declaration

      327kb | ENG

    3. Hawk MiniWave Manual

      2.7MB | ENG

    4. Hawk MiniWave Datasheet

      1.6MB | ENG

Similar products

  1. Non-contact acoustic wave level transmitters.

    Sultan Non-contact acoustic wave level transmitters.

    Non-contact level transmitters for solids and liquids utilizing innovative technology of acoustic wave.

    details
  2. Economic non-contact radar

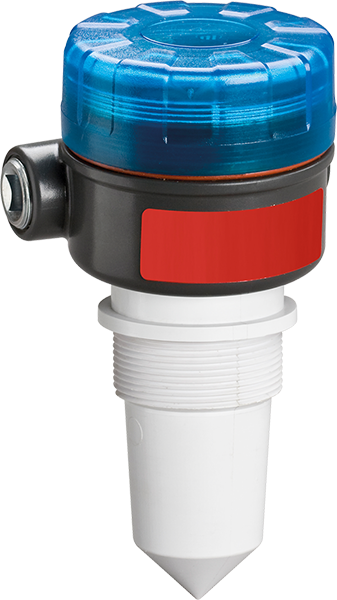

    R82 Economic non-contact radar
