SFS Diaphragm seals with internal diaphragm

MERCON

MERCON

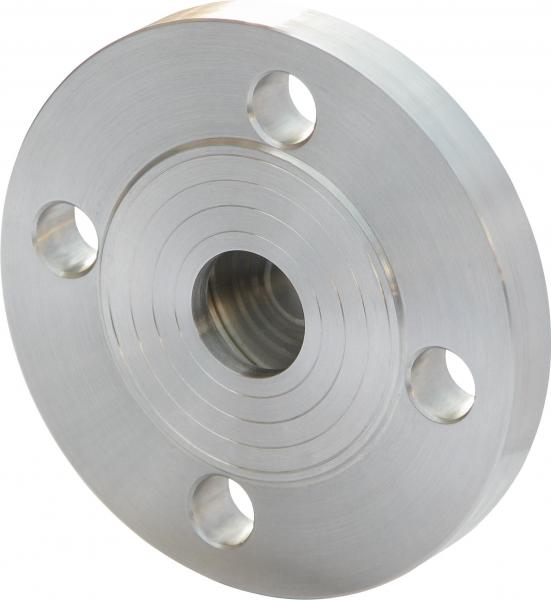

Kołnierzowy separator membranowy z wewnętrzną membraną MERCON SFS

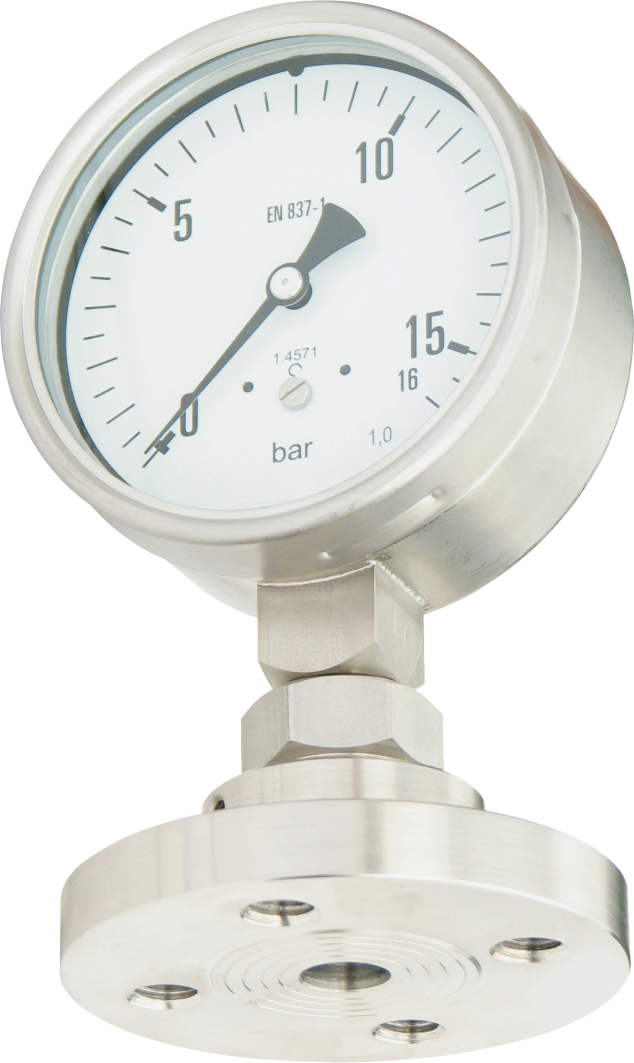

  • SFS diaphragm seal on inside diaphragm, connection with pressure gauge.

Diaphragm seals with a flange and internal diaphragm which is greater than the nominal size of the connector. Used when the nominal size of the collar and the same membrane would be insufficient for the proper operation of the system.
Normally available in sizes from DN10 to DN25 according to EN1092-1 standards (DIN 2501) or ANSI pressure range PN10..PN40. Performance of other standards, pozanormatywne or other sizes are available on request.

The standard range PN10 to PN40

  1. Features
  2. Specification
  3. Downloads
  • Diaphragm used to isolate the measuring device from the aggressive, corrosive, toxic, moderately viscous or crystallising. They can also protect the instrument from a very low or high temperature process.

    The principle of operation is based on the transmission of pressure via a flexible diaphragm and fill fluid on the sensing element of the instrument - Bourdon tube pressure gauge in the sensor or transducer or pressure switch.

    Application

    • Chemical Industry
    • Petrochemical Industry
    • Flange connections with small nominal diameter
    • Other

    Features

    • Inner membrane
    • Flange compliant EN1092-1 (DIN2501) ANSI B 16.5 or other
    • A wide range of connections to the measuring instrument
    • A wide selection of materials, membrane separation
    • Several types of steel flange
    • Several types of oils fill the measuring system
    • Optional stainless steel capillary tube reinforced with a length of up to 15m
    • Optional radiator

    • Variable pressure
    • Process connection DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium
  • `
    1. MERCON SFS Karta katalogowa

      160kb | POL

    2. MERCON SFS Datasheet

      161kb | ENG
