SFE Diaphragm seals with extension

MERCON

Separators with flange connection and extended diaphragm (Flush) fitted to the nozzle of the process connection is one of the most widely used in the industry types of separators.
The standard is available in sizes from DN25 to DN100 according to EN1092-1 standards (DIN 2501) or ANSI. Performance of other standards, pozanormatywne or other sizes are available on request.

The standard measuring range from PN10 to PN100 - others on request.

Separators flange barreled used to isolate the measuring device from the aggressive corrosive crystallize heterogeneous, abrasive, highly viscous or toxic media. They can also protect the instrument from a very low or high temperature process.

The principle of operation is based on the transmission of pressure via a flexible diaphragm and fill fluid on the sensing element of the instrument - Bourdon tube pressure gauge in the sensor or transducer or pressure switch.

Application
Chemical Industry

Petrochemical Industry

Energy Industry

Other
Features

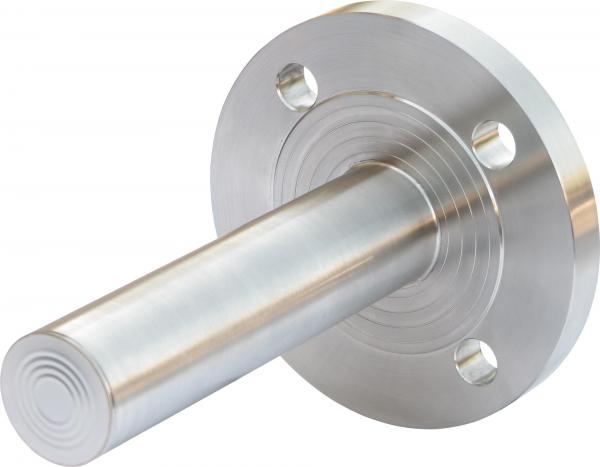

Tube with a flush diaphragm (front) with a length according to the requirements

Flange compliant EN1092-1, (DIN2501), ANSI B 16.5

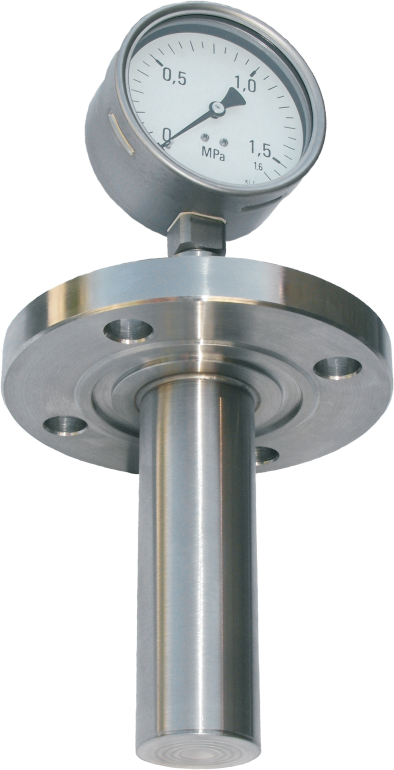

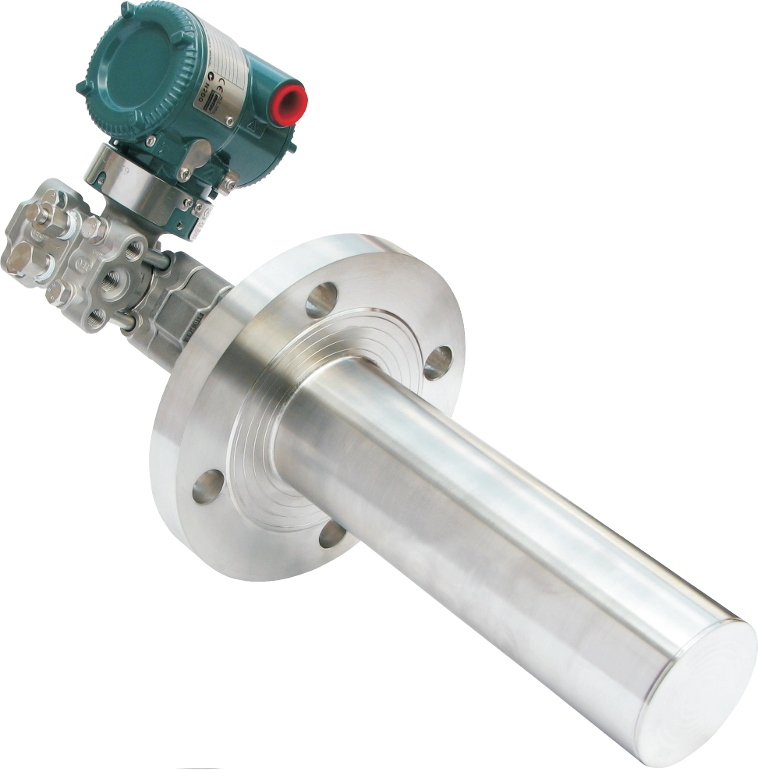

A wide range of connection to the measuring instrument

A wide range of materials membrane separation

Several types of steel flange

Several types of oil filling Measuring System

Optional stainless steel capillary tube reinforced with a length of 15m do

Optional heater
- Variable pressure
- Process connection DIN flange, ANSI flange
- Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium
`
