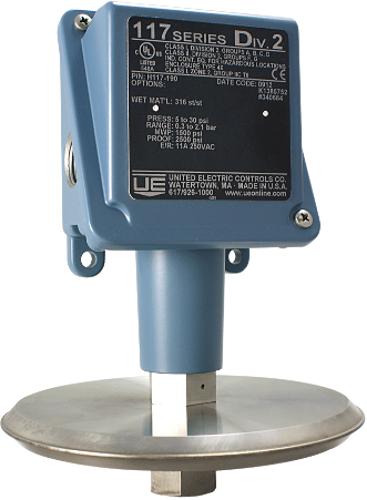

117 Series Switches with hermetically sealed snap switch

United Electric Controls

United Electric Controls

Sygnalizator z hermetycznym wyłącznikiem 117 United Electric Controls

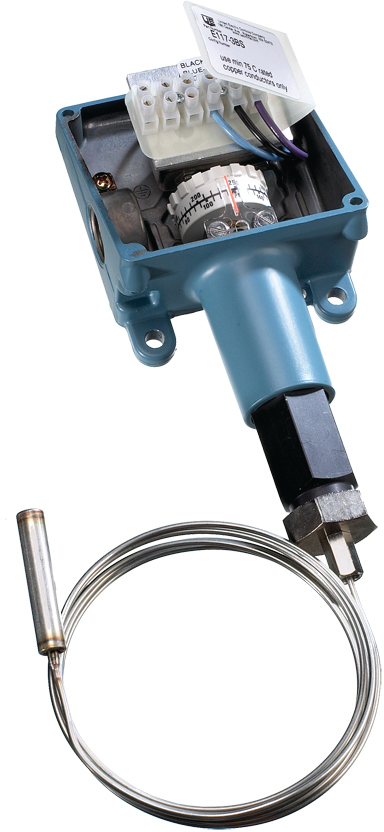

  • UE 117 Series for temperature measurement

The 117 Series as the 100 Series can be used to measure vacuum, pressure, differential pressure, or temperature in a variety of applications. The difference is that the 117 series is equiped with hermetically sealed switch and terminal block.

All welded, stainless steel pressure connections and sensors provide superior corrosion resistance – NACE compliant – and fire-safe protection within the harshest environments.

Approvals & certificates

  • PED PED
  • CE CE
  • NACE NACE
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • IECEx IECEx
  • INMETRO INMETRO
  • PESO PESO
  • UL UL
  1. Features
  2. Specification
  3. Downloads

  • Aplications:

    The 117 Series is an ideal choice for the most demanding applications; typically steel and aluminum mills, chemical and petrochemical plants, pulp and paper mills, wastewater treatment plants, midstream and downstream oil & gas, and pharmaceutical plants.

    Features:

    • Compact design
    • Hermetically sealed snap switch, SPDT or DPDT output
    • Terminal block wiring
    • Tamper-Resistant Set Point “Lock”

    Ranges:

    • Pressure: -1 to 241,3 bar
    • “wc Ranges:  -746, 7 to 622,3 mbar
    • Differential Pressure 2,0 mbar to 34,5 bar
    • Temperature: -84.4 to 337.8°C

    • Variable pressure, differential pressure, temperature
    • Output signal VDC switch, VAC switch
    • Repeatablity 1%, 1.5%
    • ATEX Ex i
    • Process connection 1/8 NPT female, 1/4 NPT female, 1/2 NPT female
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, phosphor bronze, Buna N / NBR, brass, Viton® / FKM / FPM, Kapton®
    • Seals Buna N / NBR, Viton® / FKM / FPM
    • Electrical connection 1/2 NPT female
    • Housing aluminum
    • Ingress protection rating IP66
  • `

    1. UE EAC Certificate

      1.8MB | ENG

    2. UE ATEX Ex ia certificate

      1.6MB | ENG

    3. UE IECEx Certificate

      435kb | ENG

    4. UE LVD CE Declaration

      206kb | ENG

    5. UE PED CE Declaration

      96kb | ENG

    6. UE Short form catalogue

      14MB | ENG

    7. UE 117 Series pressure Installation Manual

      389kb | ENG

    8. UE 117 Series Datasheet

      2.3MB | ENG

    9. UE 117 Series temperature Installation Manual

      326kb | ENG
