120 Series Explosionproof switches

United Electric Controls

United Electric Controls

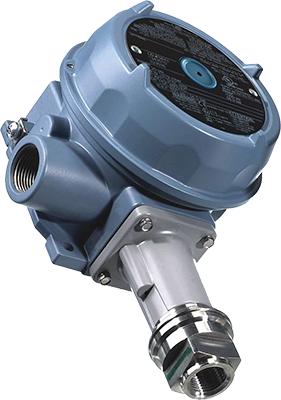

Ognioszczelny sygnalizator ciśnienia 120 SIL 2 United Electric Controls

  • 120 Series Models

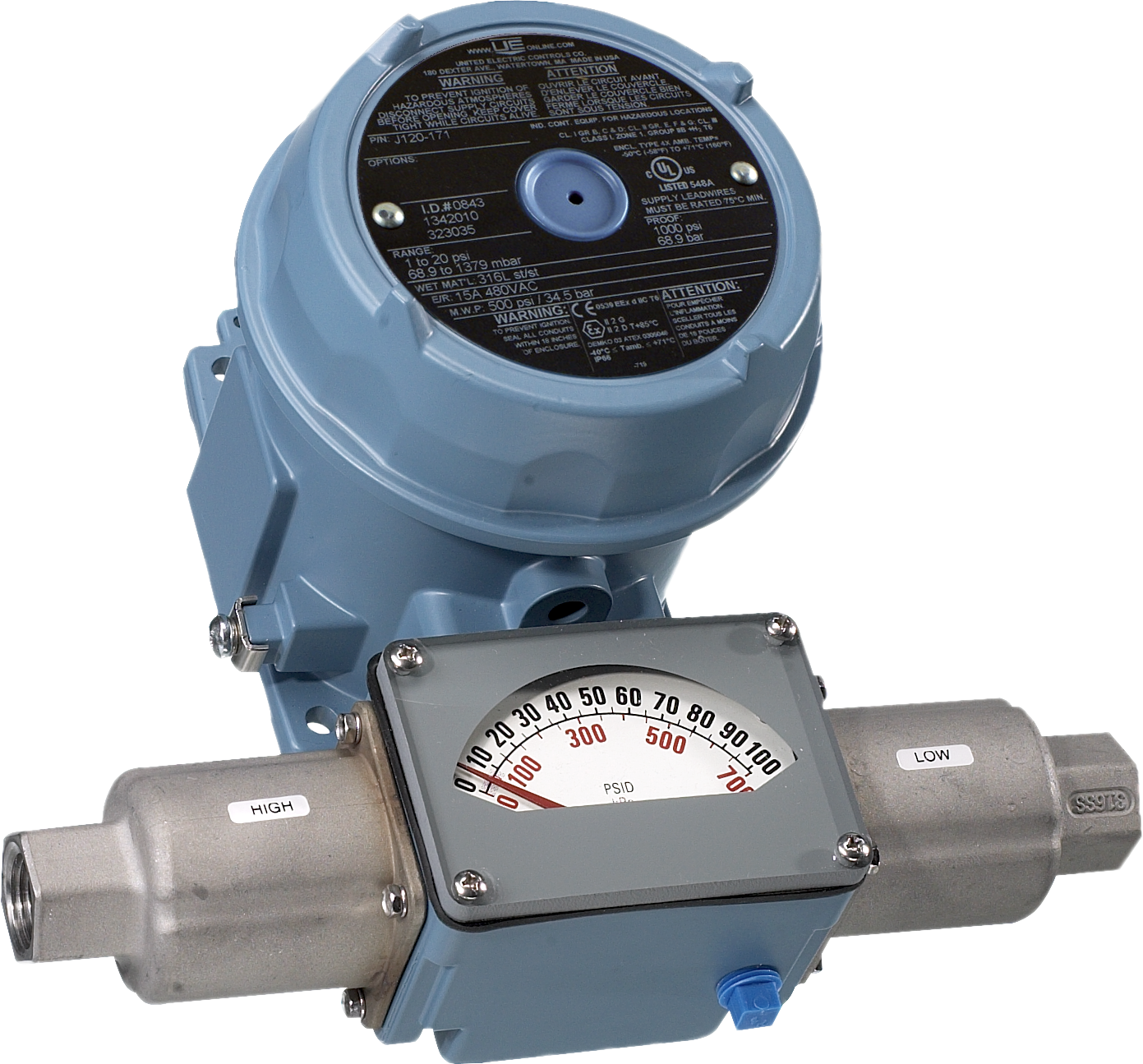

  • UE Series 120 for differential pressure measurement

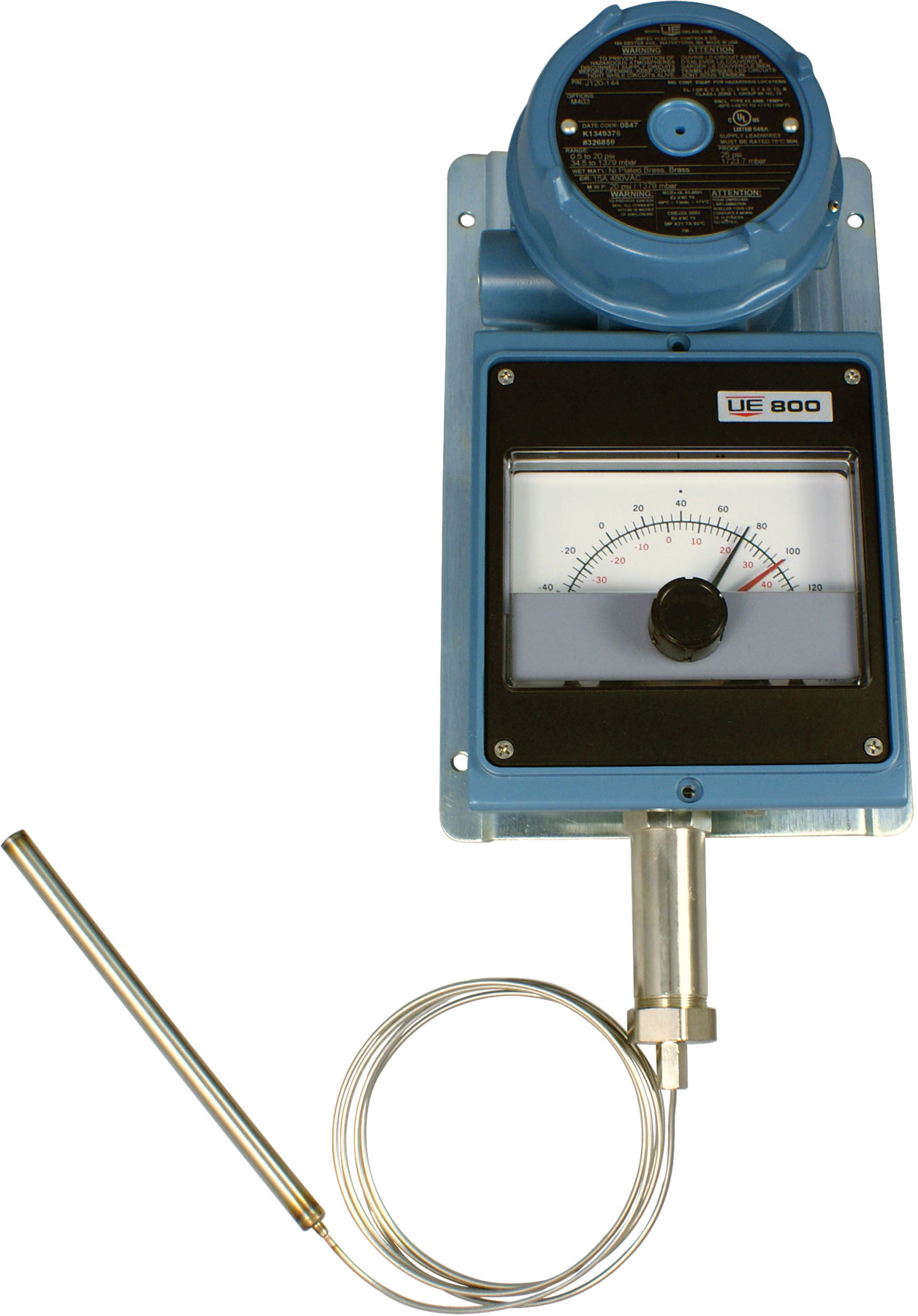

  • UE 822 Series for temperature measurement

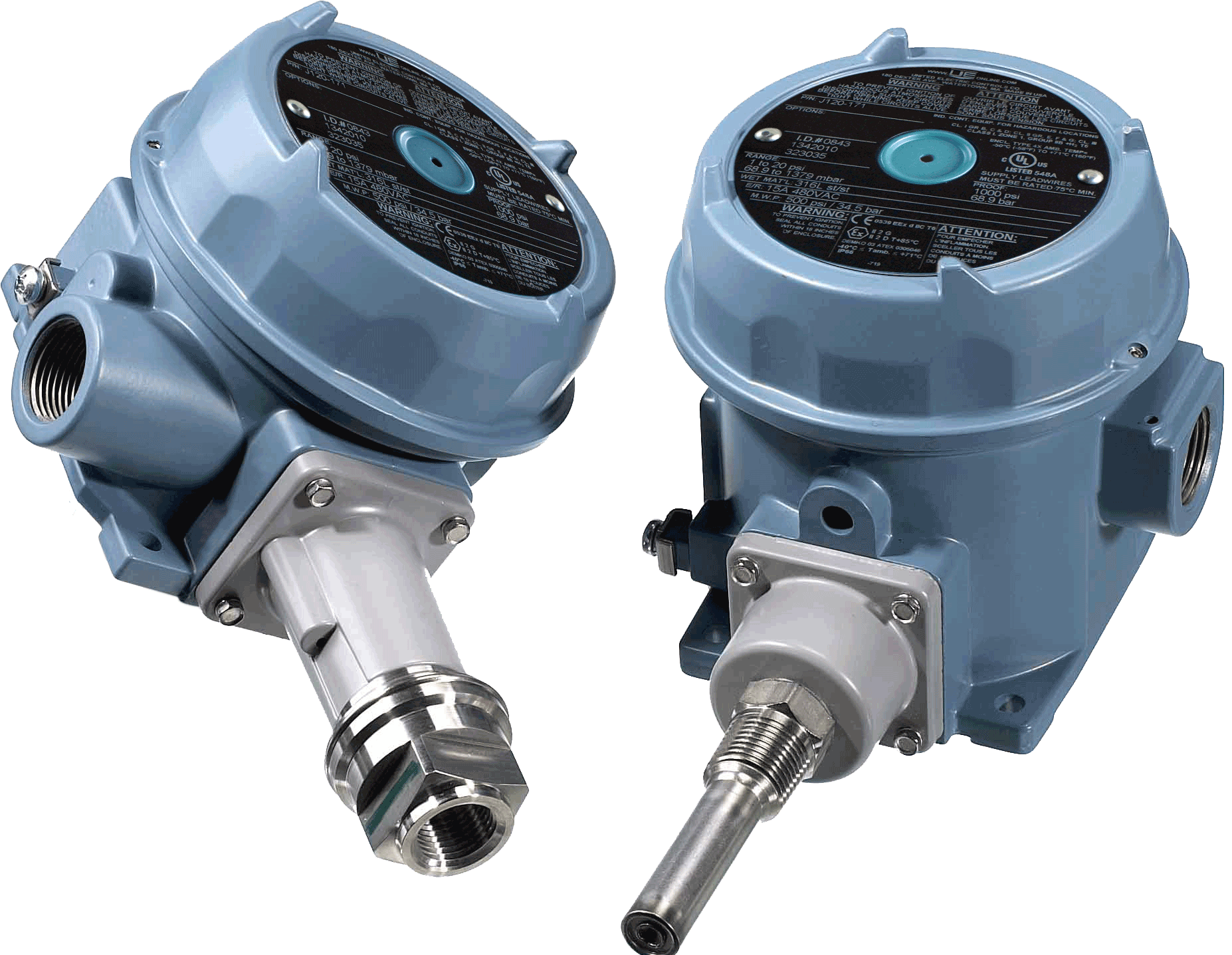

  • UE 120 Series

The 120 Series consist of pressure, differential pressure and/or temperature switches. Meeting hazardous location requirements through worldwide approvals and certifications, UE’s 120 Series is the choice where potentially explosive or highly corrosive atmospheres exist.

Because of its wide variety of sensor materials (adjustable set point ranges and wetted parts materials) the 120 Series is one of the most popular UEC's products.

Approvals & certificates

  • CE CE
  • PED PED
  • NACE NACE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EHEDG EHEDG
  • CQST CQST
  • EAC Ex EAC Ex
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • PESO PESO
  • UL UL
  • cUL cUL
  • cULus cULus
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  1. Features
  2. Specification
  3. Downloads

  • Applications:

    Typical industries using 120 Series switches include chemical, petrochemical, refinery, oil and gas production and transmission, and pharmaceuticals.

    Features:

    • Standard product approvals include cULus, ATEX and IECE
    • Optional approvals for Russia, Ukraine, China, India, Korea, Brazil  and Taiwan
    • Many models compliant to NACE MR-0175
    • Internal adjustment hex screw or external adjustment via calibrated dial(s) with tamper-resistant cover
    • Integral cover lock SPDT, DPDT or dual SPDT output
    • Optional hermetically sealed micro-switch
    • Wide variety of sensor materials
    • Optional Hastelloy® and Monel® sensor material for corrosive media
    • Wide adjustable deadbands models Heat tracing temperature models
    • SIL 2/3 certificate




    • Variable pressure, differential pressure, temperature
    • Output signal VDC switch, VAC switch
    • Repeatablity 1.5%, 2.5%
    • ATEX Ex i, Ex d
    • Process connection 1/8 NPT female, 1/4 NPT female, 1/2 NPT female
    • Sensor / wetted parts material 316/316L, 304, Hastelloy, Monel, aluminum, copper, phosphor bronze, PTFE, Buna N / NBR, brass, Viton® / FKM / FPM
    • Seals Buna N / NBR, Viton® / FKM / FPM
    • Electrical connection 3/4 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `

    1. UE EAC Certificate

      1.8MB | ENG

    2. UE ATEX Ex ia certificate

      1.6MB | ENG

    3. UE IECEx Certificate

      435kb | ENG

    4. UE ATEX Ex ia CE Declaration

      198kb | ENG

    5. UE LVD CE Declaration

      206kb | ENG

    6. UE PED CE Declaration

      96kb | ENG

    7. UE Short form catalogue

      14MB | ENG

    8. UE 120 Series ATEX Ex d Certificate

      440kb | ENG

    9. UE 120 Series temperature Installation Manual

      1.6MB | ENG

    10. UE 120 Series pressure Installation Manual

      1.2MB | ENG

    11. UE 120 Series Datasheet

      5MB | ENG

    12. UE 120 Series SIL 2 certificate

      127kb | ENG

    13. UE 120 Karta katalogowa

      1.1MB | POL
