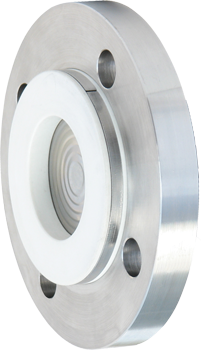

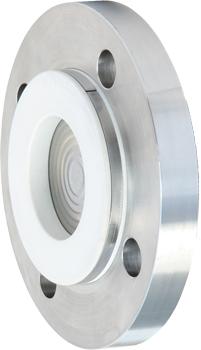

SFCh Chemical resistant flanged diaphragm seals

MERCON

Diaphragm seals with better, thanks to diaphragm and flange face special materials combination, chemical resistance than standard, stainless steel only make. They are used mainly in chemical and petrochemical industry with high corrosive, aggresive and toxic media.

Diaphragm seals are used to isolate the measuring device from the aggressive, corrosive, toxic, viscous or crystallising media. They can also protect the instrument from a very low or high process temperature.

The principle of operation is based on the transmission of pressure via a flexible diaphragm and filling fluid to the sensing element of instrument - Bourdon tube or electronic sensor.

Application
chemical industry

petrochemical industry

highly corrosive, toxic or requiring special materials media
Features
diaphragm and flange face material combinations improving chemical resistance

enlarged diaphragm size

flange compliant to EN1092-1 (DIN2501), ANSI B 16.5 or other

a wide range of connections to the measuring instrument

several types of filling fluids

up to 15 m long optional stainless steel capillary

optional radiator
- Variable pressure
- Process connection DIN flange, ANSI flange
- Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium, PTFE
`
1. MERCON SFCh Karta katalogowa

  172kb | POL
2. MERCON SFCh Datasheet

  174kb | ENG
