SFT Diaphragm seals with internal diaphragm

MERCON

MERCON

MERCON Separator membranowy SFT

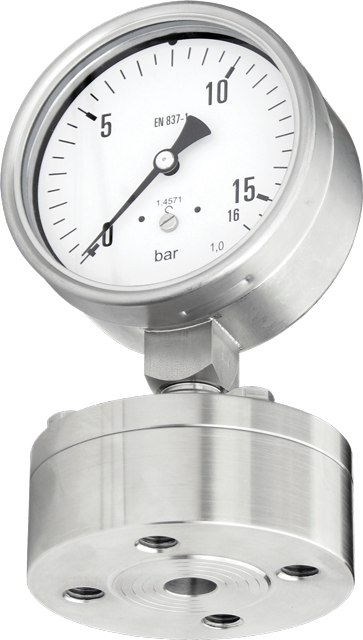

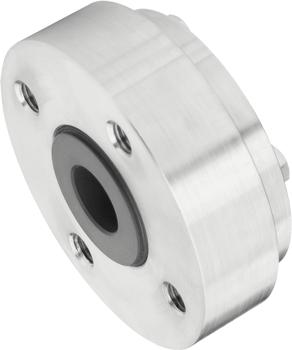

Diaphragm seal with up to DN25 flange connection. Thanks to internal, wider than nominal flange, size can be used when smaller diameter membrane would not be enough to work properly.

Available sizes from DN15 to DN25 acc. to EN1092-1 (DIN 2501) or ANSI and up to 40 bar. Seals can be made out of standards' dimensions.

  1. Features
  2. Specification
  3. Downloads
  • Diaphragm seals are used to isolate the measuring device from the aggressive, corrosive, toxic, viscous or crystallising media. They can also protect the instrument from a very low or high process temperature.

    The principle of operation is based on the transmission of pressure via a flexible diaphragm and filling fluid to the sensing element of instrument - Bourdon tube or electronic sensor.

    Application

    • chemical industry
    • petrochemical industry
    • flange connections with small nominal diameter
    • other

    Features

    • internal diaphragm
    • flange compliant to EN1092-1 (DIN2501), ANSI B 16.5 or other
    • a wide range of connections to the measuring instrument
    • a wide selection of materials and diaphragm
    • several types of flange material
    • several types of filling fluids
    • up to 15 m long optional stainless steel capillary
    • optional radiator

    • Variable pressure
    • Process connection DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, PTFE
  • `
    1. MERCON SFT Karta katalogowa

      177kb | POL

    2. MERCON SFT Datasheet

      178kb | ENG
