Vector™ Magnetic level indicator

Magnetrol International

Magnetrol International

Poziomowskaz magnetyczny Vector Magnetrol

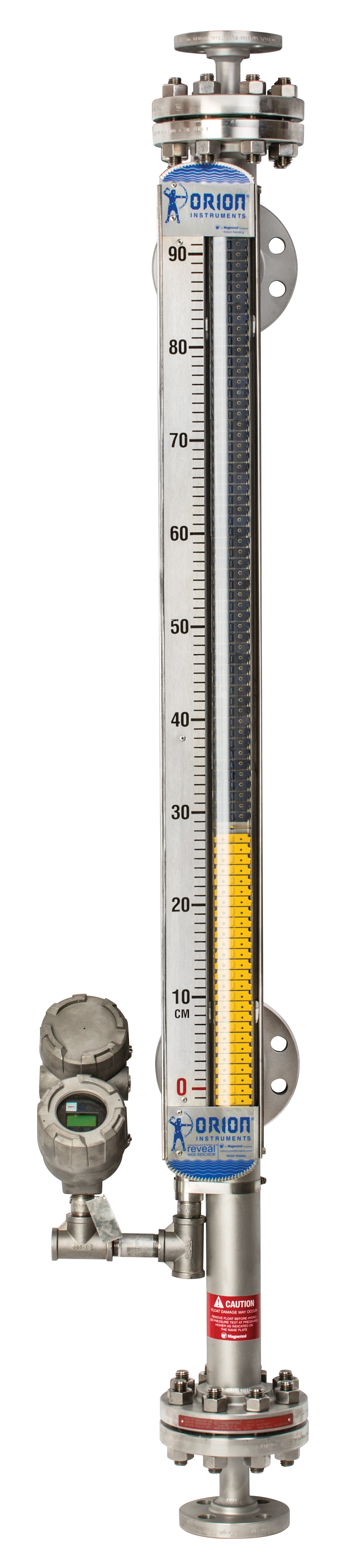

  • Vector™ with external mounted magnetostrictive level transmitter Jupiter® 200

Vector™ is a cost-effective version of magnetic level indicator recommended for standard applications of level measurement.

Magnetic level indicator works on the basis of communicating vessels system. Level in a chamber of device is equal to the level in the main vessel. Inside the level indicator chamber there is a float equipped with magnet inside, which floats on the liquid surface. Float movement causes change of alignment of indication rail flaps, relay state of reed switch and level transmitter signal in which magnetic level indicator can be equipped.

Approvals & certificates

  • ATEX Ex c ATEX Ex c
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • Vector™ is a cost-effective version of magnetic level indicator recommended for standard applications of level measurement.

    Magnetic level indicator works on the basis of communicating vessels system. Level in a chamber of device is equal to the level in the main vessel. Inside the level indicator chamber there is a float equipped with magnet inside, which floats on the liquid surface. Float movement causes change of alignment of indication rail flaps, relay state of reed switch and level transmitter signal in which magnetic level indicator can be equipped.

    Magnetic level indicator successfully replaces old and difficult in maintenance gauge glass indicator.

    Advantages

    • Measuring range: up to 5,5 m
    • Medium temperature: -40 to 260 °C
    • Maximum pressure: 51 bar
    • Minimum medium density: 0,54 kg/dm³
    • Rugged, industrial-grade construction
    • Shatter-resistant viewing window
    • Special design of indication rail flaps which prevents their 360° rotation
    • Optional scale of indication rail in m/cm
    • Optional level switches and transmitter
    • Available flange, threaded and welded connections
    • Custom float designs

    • Variable level, interface level
    • Output signal VAC switch
    • ATEX Ex c
    • Process connection 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/2 NPT male, 2 NPT male
    • Sensor / wetted parts material 316/316L, 304, CPVC
  • `
    1. Magnetrol Vector Datasheet

      4.2MB | ENG

    2. Magnetrol Vector User manual

      480kb | ENG

    3. Magnetrol Vector Certificate ATEX Ex c

      135kb | ENG

    4. Magnetrol Product Line Quick Reference

      4.9MB | ENG
