E3 Modulevel® Electronic displacer transmitter

Magnetrol International

Magnetrol International

Elektroniczne, nurnikowe przetworniki poziomu Modulevel E3 Magnetrol

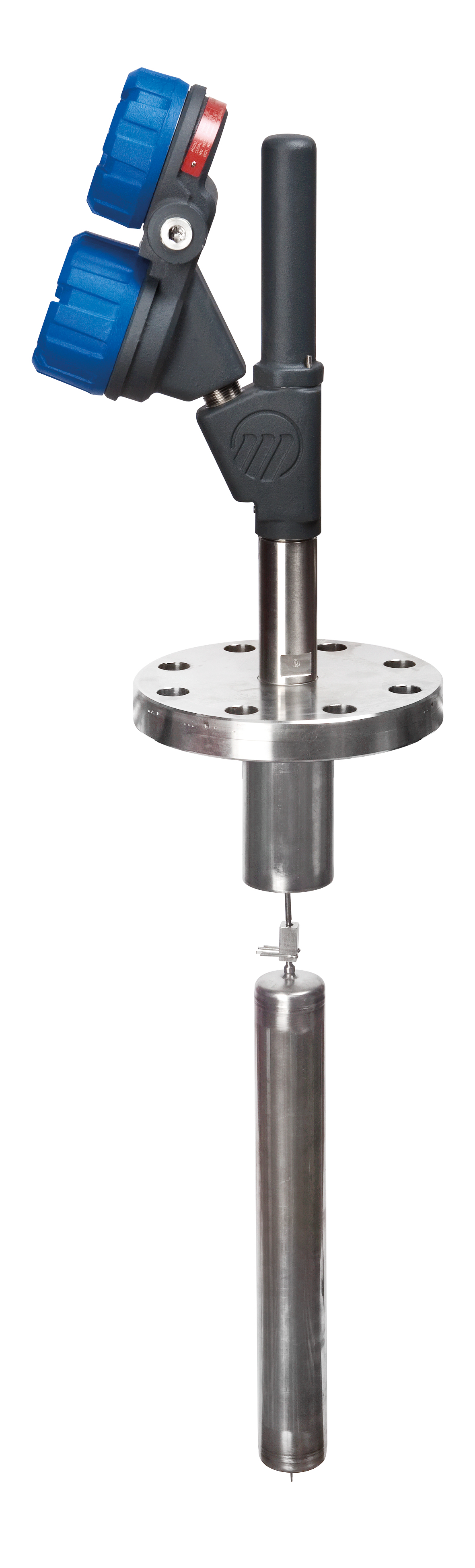

  • E3 Modulevel® for direct mounting in the vessel
  • E3 Modulevel® mounted in the side cage

Modern level, interface and density displacer transmitter utilizing buoyancy principle to detect and convert liquid level changes into a stable output signal.

Unlike typically meet designs of torque tube based displacer transmitters E3 Modulevel® utilizes LVDT sensor which basically is linear moving steam followed by change in level ,causing change in magnetic induction which then is detected and converted to output signal via LVDT transmitter.

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex d ATEX Ex d
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • SIL 3 SIL 3
  • LR LR
  • HART® HART®
  • FF FF
  1. Features
  2. Specification
  3. Applications
  4. Downloads
  • E3 Modulevel® is 2 wire, loop powered level transmitter utilizing buoyancy principle to detect and convert liquid level changes into a stable output signal.

    Unlike typically meet designs of torque tube based displacer transmitters E3 Modulevel® utilizes LVDT sensor which basically is linear moving steam followed by change in level ,causing change in magnetic induction which then is detected and converted to output signal via LVDT transmitter.

    Such technology enables accurate level or interface measurement in applications where foam, high pressure and temperature  and medium turbulence are present.



    Advantages
    • Measuring ranges: up to 3 m
    • Medium temperature: -196 do 450 °C
    • Maximum pressure: up to 355 bar
    • No calibration required at the field
    • 2-wire loop powered intrinsically safe level transmitter
    • Local LCD with 3 programming buttons
    • Possibility to change medium density settings at running process
    • 360° rotatable housing can be dismantled without depressurizing the vessel
    • Integral or remote electronics
    • Medium density: 0,23 to 2,2 kg/dm³
    • Minimum medium density difference for interface: 0,10 kg/dm³
    • Linearity: ± 0,5% of range
    • Repetability: ± 0,05% of range
    • Side mounted cages available
    • Variable density, level, interface level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™
    • Accuracy 0.5%
    • Repeatablity 0.1%, 0.05%
    • ATEX Ex i, Ex d
    • Local display yes
    • Process connection other
    • Sensor / wetted parts material 316/316L
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP66
  • `
    1. Magnetrol E3 Modulevel Certificate ATEX Ex d

      119kb | ENG

    2. Magnetrol E3 Modulevel Certificate ATEX Ex ia

      196kb | ENG

    3. Magnetrol E3 Modulevel Certificate IECEx Ex d

      164kb | ENG

    4. Magnetrol E3 Modulevel Certificate IECEx Ex ia

      169kb | ENG

    5. Magnetrol E3 Modulevel Certificate SIL 3

      123kb | ENG

    6. Magnetrol E3 Modulevel User manual Foundation Fieldbus

      935kb | ENG

    7. Magnetrol E3 Modulevel User manual HART

      4.3MB | ENG

    8. Magnetrol E3 Modulevel User manual SIL

      693kb | ENG

    9. Magnetrol E3 Modulevel User manual SIL 3

      1.6MB | ENG

    10. Magnetrol E3 Modulevel Datasheet

      2MB | ENG

    11. Magnetrol E3 Modulevel Report FMEDA SIL

      251kb | ENG

    12. Magnetrol E3 Modulevel Report FMEDA SIL 3

      494kb | ENG

    13. Magnetrol E3 Modulevel Instrukcja

      4.3MB | POL

    14. Magnetrol E3 Modulevel Manual HART DE

      4.3MB DE

    15. Magnetrol E3 Modulevel Datasheet DE

      1.2MB DE

    16. Magnetrol Product Line Quick Reference

      4.9MB | ENG

    1. Alternative for displacer with torque tube

      Alternative for displacer with torque tube

      Displacers with torque tube are common level measurement devices in industrial applications. Their complicated mechanical design causes a lot of problems in use. Magnetrol's E3 Modulevel® displacer transmitters have no torque tube but LVDT (Linear Variable Differential Transformer) which makes these units easy to use and eliminates old generation transmitters' disadvantages.
