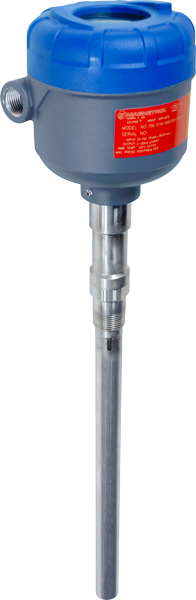

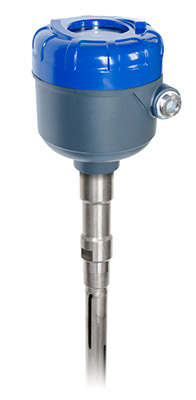

Eclipse® 700 Economical Guided Wave Radar

Magnetrol International

Magnetrol International

Eclipse 700 Ein ökonomisches Modell mit geführtem Wellenradar (GWR) Magnetrol

  • Eclipse® 700 - economical Guided Wave Radar

New generation Guided Wave Radar with exceptional signal strength, for general purpose applications.

Eclipse® 700 is an economical model with integrated probes. Advanced technologies known from model Eclipse® 706, now available also for less demanding applications.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • Ex nA Ex nA
  • FM FM
  • IECEx IECEx
  • SIL 3 SIL 3
  • HART® HART®
  1. Features
  2. Specification
  3. Downloads
  • The Eclipse® Model 700 Transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven and accepted technology of Guided Wave Radar (GWR). Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

    This single transmitter can be used in a wide variety of applications ranging from very light hydrocarbons to water-based media.

    One universal Model 700 transmitter can be used and interchanged with several different probe types and offers enhanced reliability as it is certified for use in critical SIL 2/3 hardware safety loops.

    The ECLIPSE Model 700 supports both the FDT/DTM and Enhanced DD (EDDL) standards, which allow viewing of valuable configuration and diagnostic information such as the echo curve in tools such as PACTware™, AMS Device Manager, and various HART® Field Communicators.


    Magnetrol, new generation Radar Level Transmitters

    Applications

    • general purpose
    • liquids
    • hydrocarbons
    • water based media
    • solids

    Features

    • ranges up to 30 m
    • dielectric constant: εr = 1.2-100
    • process temperature: -196 to 200°C
    • pressure up to 430 bar
    • overfill capability - measurement up to process seal
    • advanced, proactive diagnostics
    • 30-point custom linearization table
    • easy to configure
    • 4-20 mA loop powered
    • local LCD with 4 buttons
    • integral electronics housing
    • SIL 2 / SIL 3 certificate
    • supports both the FDT/DTM and Enhanced DD (EDDL) standards
    • Variable level, interface level, flow, volume
    • Output signal 4..20 mA analogue
    • Digital communication HART®
    • Accuracy 0.1%
    • Repeatablity 2.5 mm
    • ATEX Ex i, Ex n
    • Local display yes
    • Process connection threaded, DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, PTFE
    • Seals Viton® / FKM / FPM, glass ceramic alloy, PTFE
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Eclipse 700 Datasheet

      1.8MB | ENG

    2. Magnetrol Eclipse 700 Manual HART

      3.1MB | ENG

    3. Magnetrol Radar solutions

      1019kb | ENG

    4. Magnetrol Product Line Quick Reference

      4.9MB | ENG

    5. Magnetrol Eclipse 706/700 Application Questionnaire

      355kb | ENG

    6. Magnetrol Eclipse 700 ATEX Ex i Certificate

      600kb | ENG

    7. Magnetrol Eclipse 700 ATEX Ex n Certificate

      576kb | ENG

    8. Magnetrol Eclipse 700 SIL3 Certificate

      113kb | ENG

    9. Magnetrol Eclipse 700 FMEDA Report

      714kb | ENG

Similar products

  1. 26 GHz non-contact radar

    Pulsar® R86 26 GHz non-contact radar

    New generation non-contact radar with 26 GHz signal frequency for continuous liquid level or volume measurement.

    details
  2. High performance guided wave radar

    Eclipse® 706 High performance guided wave radar

    New generation, high performance Guided Wave Radar with increased signal strength, for most demanding applications

    details
  3. High performance non-contact radar

    Pulsar® R96 High performance non-contact radar

    High performance non-contact radar for continuous measurement of liquid level, volume or mass

    details
  4. Economic non-contact radar

    R82 Economic non-contact radar

    Economic and compact non-contact radar for continuous measurement of liquid level, volume or flow

    details
