A15 / B15 Displacer swicthes for floating roof

Magnetrol International

Magnetrol International

Nurnikowy sygnalizator poziomu na pływający dach A15 B15 Magnetrol

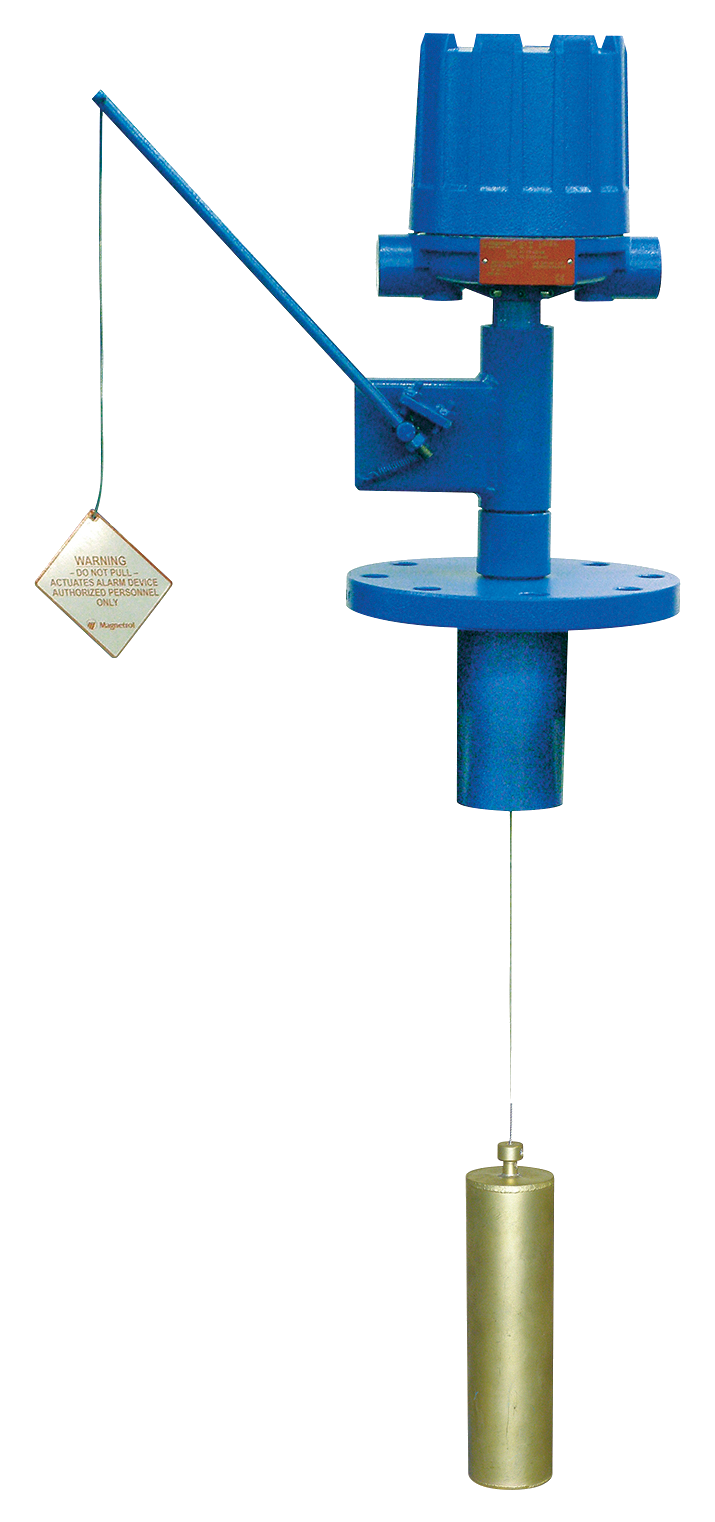

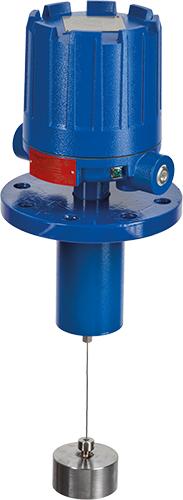

  • Displacer switch with brass displacer and Proof-er® ground check

One point A15 and two point B15 level switch models are equipped with non-sparking brass displacers which are used for high and high-high alarm in tanks with floating roof.

Model A15 can be used for floating roof detection or liquid switch point level.

Displacer switches can be optionally equipped in Proof-er® ground check to test switch functionality without having to climb the tank.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • KOSHA KOSHA
  • INMETRO INMETRO
  • LR LR
  1. Features
  2. Specification
  3. Downloads
  • Measuring ranges: up to 6 mMaximum pressure: 55,1 barMinimum medium density: 0,4 kg/dm³Displacers adjustable at any point along the suspension cableField adjustable set point and switch differentialWide choice of displacer materialsWide choice of housings and switch mechanismsStandard anti-corrosive protection

    Displacer switches utilize buoyancy force acting on immersed displacers in the liquid to detect and convert liquid level changes to signal outputs.

    Operating principle is based on buoyancy force acting on displacers hung on suspension cable connected with spring. Increase in buoyancy force acting on displacers immersed in the liquid causes spring compression which then moves magnetic sleeve into magnet field which activates switch mechanism. Magnetic sleeve moves inside the non-magnetic tube which isolates switch mechanism from measured medium. Built-in spring stroke limit stops prevent “false alarms” caused by sudden liquid level changes.

    Advantages

    • Measuring ranges: up to 6 m
    • Medium temperature: 40 to 260 °C
    • Maximum pressure: 55,1 bar
    • Minimum medium density: 0,4 kg/dm³
    • Displacers adjustable at any point along the suspension cable
    • Field adjustable set point
    • Wide choice of displacer materials
    • Wide choice of housings and switch mechanisms
    • Standard anti-corrosive protection

    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX Ex i, Ex d
    • Process connection other
    • Sensor / wetted parts material 316/316L, brass
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum
    • Ingress protection rating IP66, IP55
  • `
    1. Magnetrol V type switches User manual

      735kb | ENG

    2. Magnetrol Hermetically sealed switches User manual

      787kb | ENG

    3. Magnetrol Housings and switches of level switches User manual

      1.5MB | ENG

    4. Magnetrol Type J pneumatic switches User manual

      1010kb | ENG

    5. Magnetrol Type K pneumatic switches User manual

      703kb | ENG

    6. Magnetrol Displacer switches Certificate ATEX Ex d

      205kb | ENG

    7. Magnetrol Displacer switches Certificate ATEX Ex ia

      167kb | ENG

    8. Magnetrol Displacer switches Certificate IECEx Ex d

      141kb | ENG

    9. Magnetrol Displacer switches User manual

      690kb | ENG

    10. Magnetrol Displacer switches Report FMEDA SIL

      1.2MB

    11. Magnetrol Displacer switches Datasheet

      1.6MB | ENG

    12. Magnetrol API 2350 Recommendations DE

      1.1MB DE

    13. Magnetrol API 2350 Recommendations EN

      6.2MB | ENG

    14. Magnetrol Product Line Quick Reference

      4.9MB | ENG
